1703 Series
1703 · Centerline Strikes, 1-1/4 x 6-7/8
1703 Series
1703 Series fail-secure electric strikes have a 6-7/8″ x 1-1/4″ anodized aluminum faceplate. Designed for hollow metal, aluminum, or wood frames, it features an adjustable keeper and supports up to a 1/2″ latch projection for reliable, easy installation.
Features
- For centerline cylindrical locksets
- Anodized aluminum faceplate, option for US28, US4 and US10B finish
- Horizontal adjustment
- A range of AC and DC models
Specifications
| Lockset compatibility | Gr. 2 Cylindrical |
|---|---|
| Prep / frame | Metal or wood frame |
| Latch projection | 1/2" |
| Operation | Fail Secure |
| Static strength | 1000 lb (454 kg) |
| Holding force | 1000 lb |
| Voltage | 12/24 VDC, 8-16 VAC / 3-6 VDC |
| Current draw | 250 mA/12 VDC, 240 mA/24 VDC |
| Product dimensions | 4-7/8" x 1-1/4" x |
| Country of origin | TWN |
| Warranty | 5 years |
Downloads
Documents
Models
| Item | Description |
|---|---|

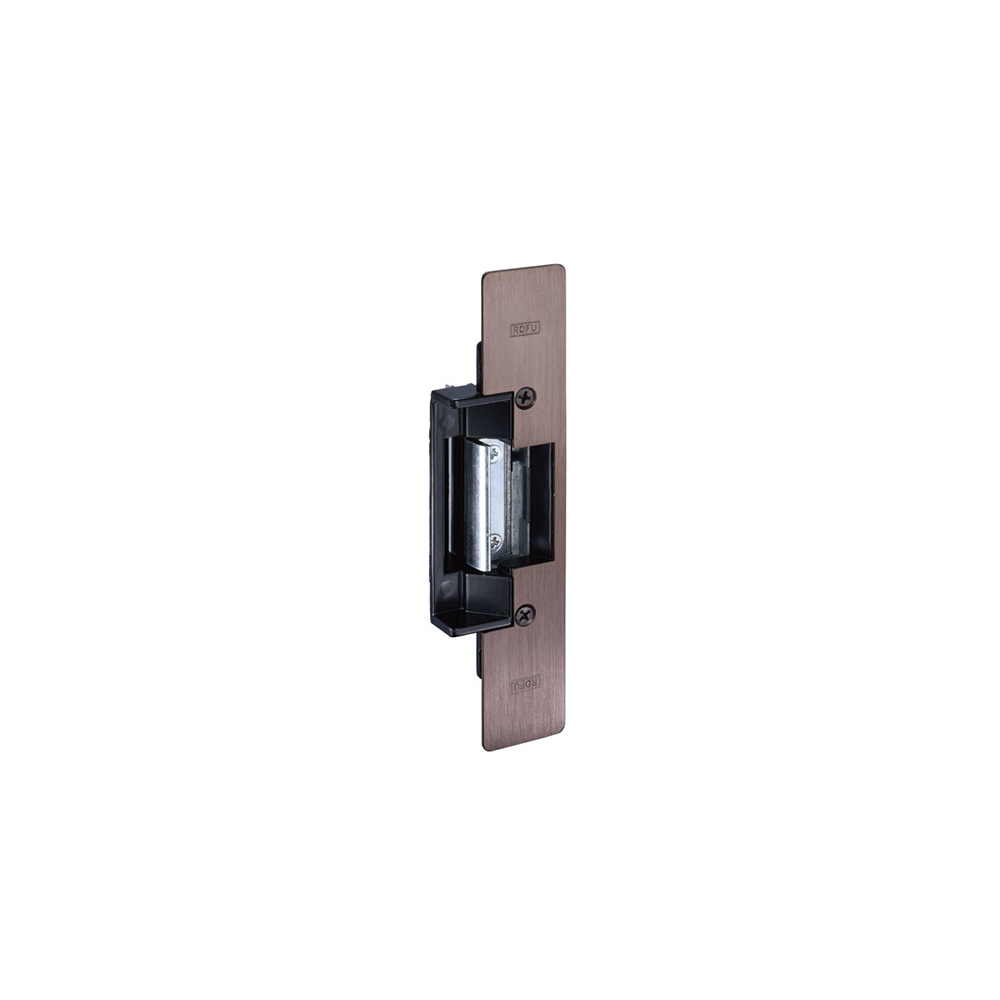

1703-01G US10B
|
Centerline Strike, 3-6 VDC/8-16 VAC, 6-7/8" x 1-1/4" Fail Secure, US10B |

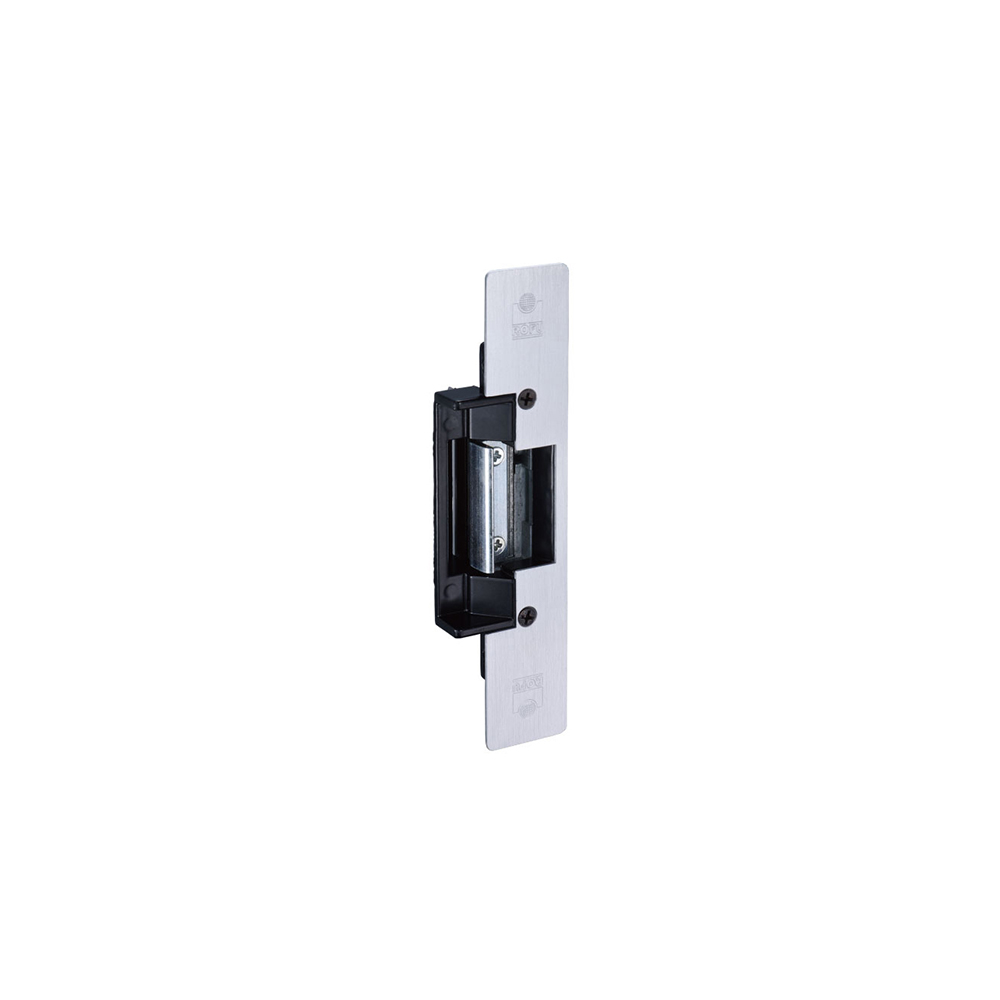

1703-01G US28
|
Centerline Strike, 3-6 VDC/8-16 VAC, 6-7/8" x 1-1/4" Faceplate, Fail Secure, US28 |
|
1703-05G US28
|
Centerline Strike, 12 VAC/DC, 6-7/8" x 1-1/4" Faceplate, Fail Secure, US28 |
|
1703-05G US10B
|
Centerline Strike, 12 VAC/DC, 6-7/8" x 1-1/4" Faceplate, Fail Secure, US10B |
|
1703-07G US28
|
Centerline Strike, 24 VAC/DC, 6-7/8" x 1-1/4" Faceplate, Fail Secure, US28 |
|
1703-07G US10B
|
Centerline Strike, 24 VAC/DC, 6-7/8" x 1-1/4" Faceplate, Fail Secure, US10B |
