8612 Series

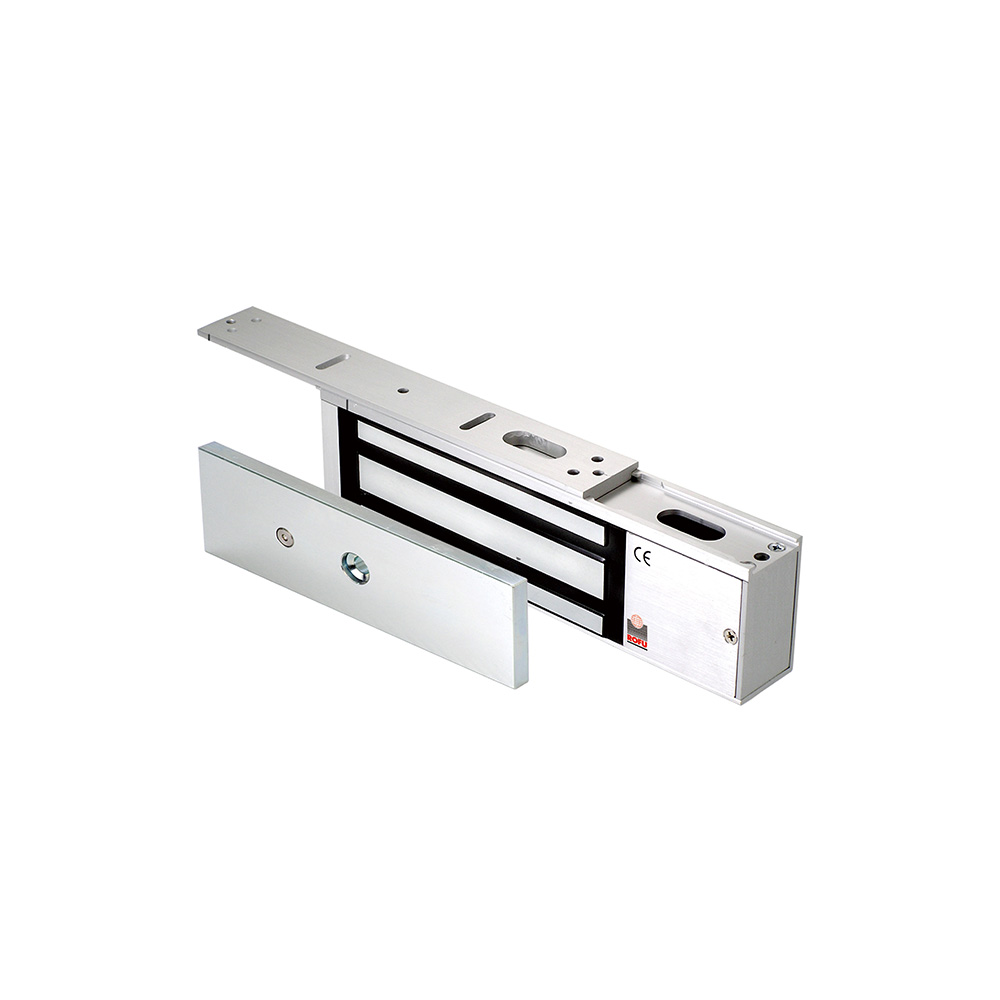

8612 · 1200lbs Surface Magnetic Lock, UL
8612 Series
8612 Series offers 1- and 2-door models with quick, easy keyhole mounting that slides into place. It features built-in MOV spike and surge protection, ensures no residual magnetism for reliable release, and is housed in durable anodized extruded aluminum.
Features
- Slide feature makes installation easier
- Heavy duty anodized aluminium construction
- One and two door models
- MOV Surge protection std., option for lightning protection
- A complete range of mounting brackets
Specifications
| Agency listings | UL10C Fire |
|---|---|
| Operation | Fail Safe |
| Holding force | 1200 lb |
| Voltage | 12/24 VDC |
| Current draw | 500 mA/12 VDC, 250 mA/24 VDC |
| Product dimensions | 8612: 10-1/2” x 1-9/16” x 2-13/16”8612-2: 21” x 1-9/16” x 2-13/16” |
| Country of origin | TWN |
| Warranty | 10 years |
Downloads
Documents
Models
Models
8 items
| Item | Description |
|---|---|
8612-LC
|
1200 lb Maglock, Slide Mount, 12/24 VDC |
| 8612-LC US19 | 1200 lb Maglock Slide Mount, 12/24 DC, 12/24 VDC, US19 |
| 8612-LC US40 | 1200 lb Maglock, Slide Mount 12/24 DC, 12/24 VDC, US40 |
| 8612-BD US19 | 1200 lb Maglock w/Bond & Door Status US19, 12/24 VDC, US19 |
| 8612-BD US40 | 1200 lb Maglock w/Bond & Door Status US40, 12/24 VDC, US40 |
|
8612-BD
|
1200 lb Maglock US28 w/Bond & Door Status, 12/24 VDC |

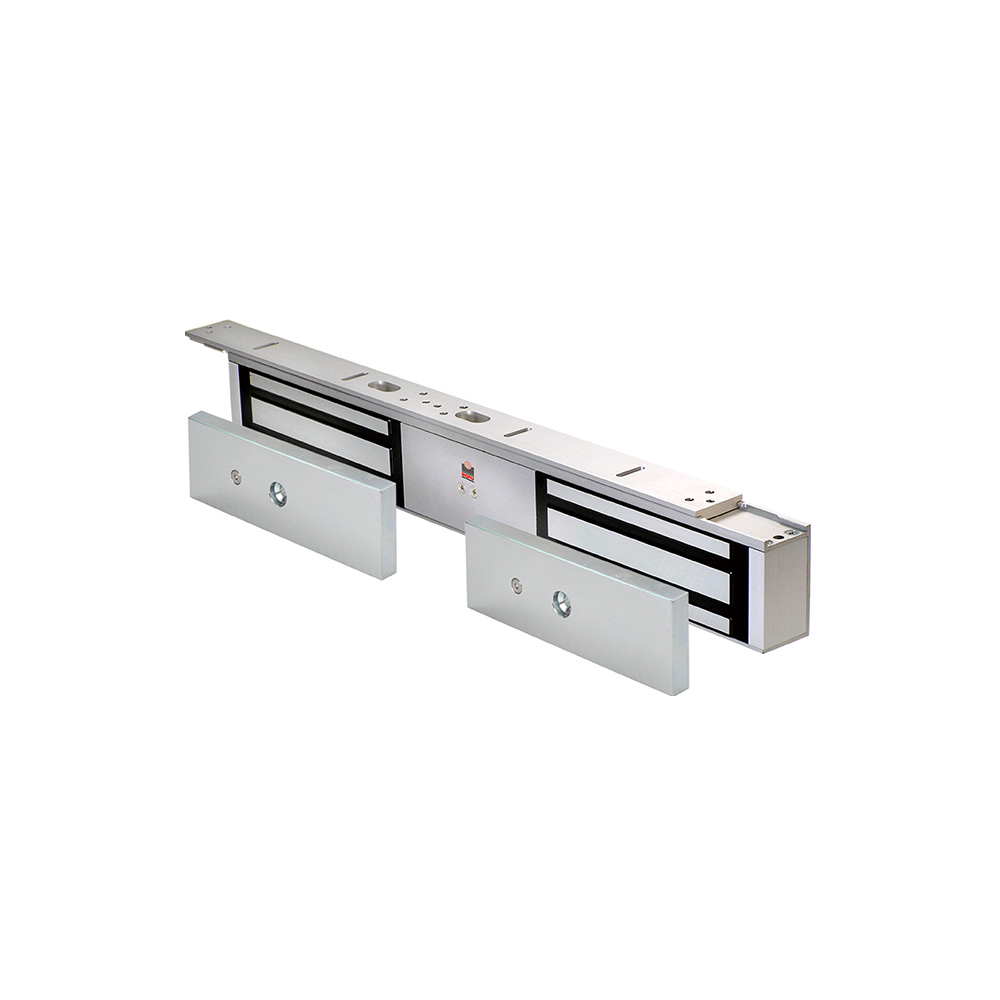

8612-2-BD
|
1200 lb x 2 Maglock w/Bond &Door Status, 12/24VDC |

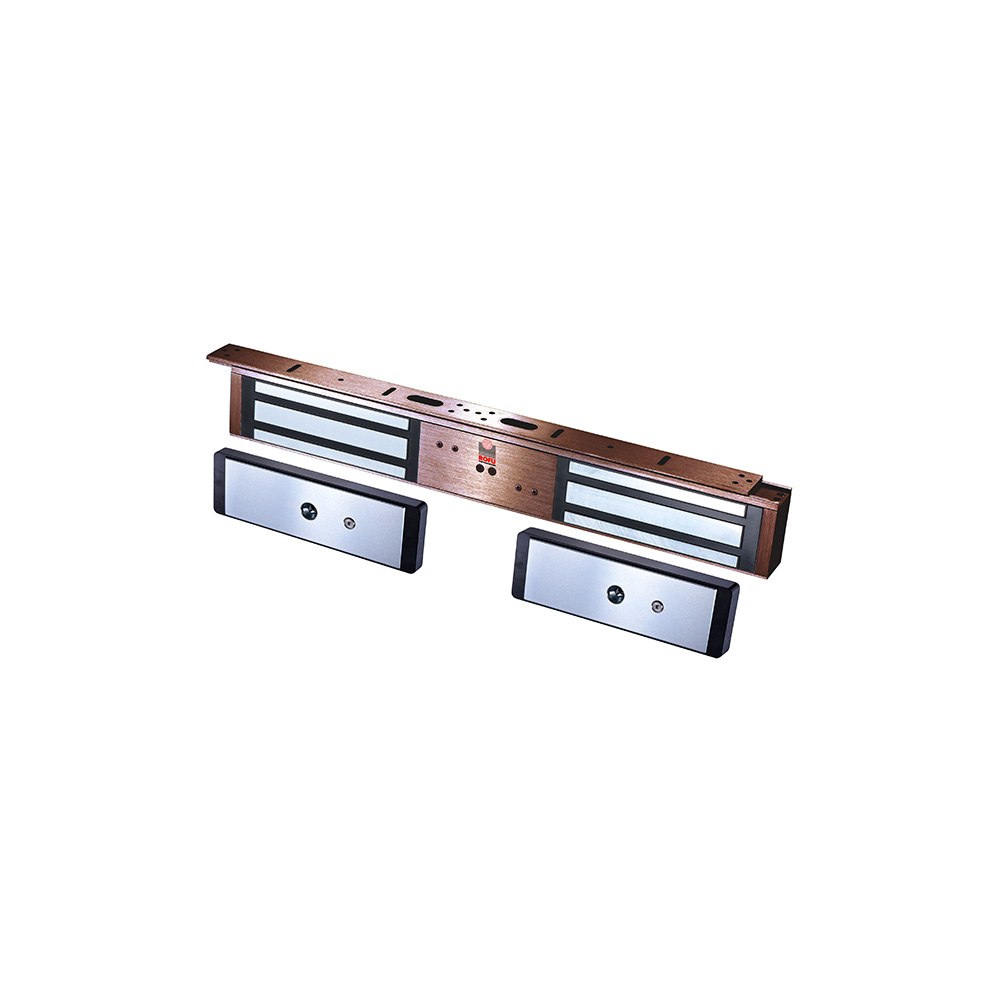

8612-2-BD US40
|
1200 lb x 2 Mag w/Bond & Door Status US40, 12/24 VDC, US40 |
Z-Bracket
4 items
| Item | Description |
|---|---|
| 21031N | Z-Bracket for 8612-LC/BD |
| 21031N US40 | Z-Bracket for 8612-LC/BD (US40) |
| 21033N | Z-Bracket for 8612-2-BD |
| 21033N US40 | Z-Bracket for 8612-2-BD (US40) |
