2400 Series
2400 · ANSI Strikes, GR. 2, UL
2400 Series
The 2400 Kit is a universal, burglary-resistant electric strike, compatible with a wide range of cylindrical locksets. The kit includes two faceplates, is dual voltage, and field reversible between fail-safe and fail-secure. Optional accessories were specifically designed for this universal electric strike; 2402 jig is a useful tool for jamb preparation, while 1” and 2” lip extensions are also available.
Features
- For cylindrical locksets
- Low Profile, 1-1/16" Depth
- Non-Handed
- Stainless steel faceplates
- Cutting jig and lip extensions available
Specifications
| Lockset compatibility | Gr. 2 cylindrical |
|---|---|
| Prep / frame | ANSI Round, metal and wood |
| Latch projection | 1/2" |
| Agency listings | UL1034 |
| Operation | Fail Safe / Fail Secure |
| Static strength | 1000 lb (454 kg) |
| Holding force | 1000 lb |
| Dynamic strength | 50 ft-lbs (6.91 m-kg) |
| Endurance | 250,000 cycles |
| Voltage | 12/24 VDC |
| Current draw | 300 mA/12 VDC, 150 mA/24 VDC |
| Product dimensions | 4-7/8" x 1-1/4" x 1-1/4" |
| Country of origin | TWN |
| Warranty | 5 years |
Downloads
Documents
Models
Models
3 items
| Item | Description |
|---|---|
2400 KIT US32D
|
ANSI Strike, Gr. 2, 12/24 VDC, UL, Fail Safe/Fail Secure, US32D, With 2 Faceplates |
2402-05LM US32D
|
ANSI Strike w/ latch monitor,12 VDC, UL, Fail Safe/Fail Secure, US32D, With 2 Faceplates |
|
2402-08LM US32D
|
ANSI Strike w/ latch monitor, 24 VDC, UL, Fail Safe/Fail Secure, US32D, With 2 Faceplates |
Tool
1 item
| Item | Description |
|---|---|
|

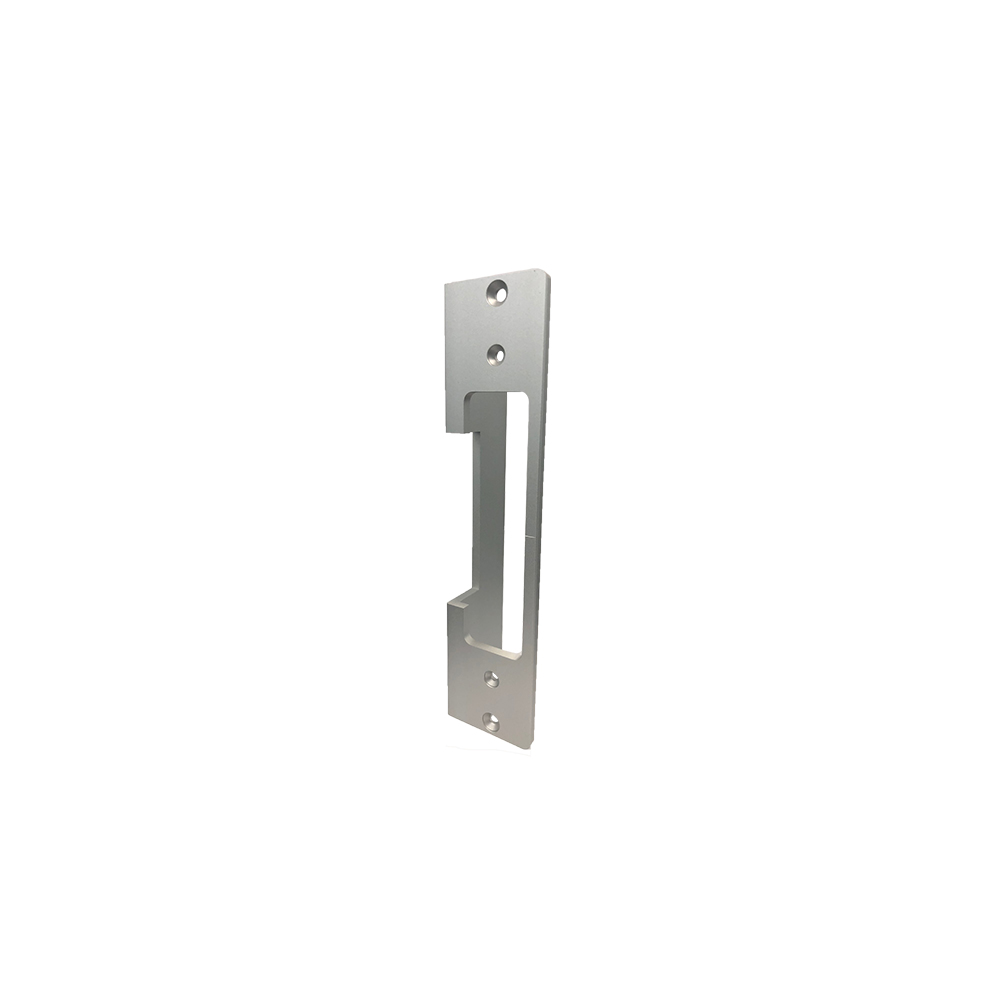

2402 JIG
|
Cutting JIG for 2400 Kit, For 4 7/8" Faceplate |
Accessory
2 items
| Item | Description |
|---|---|

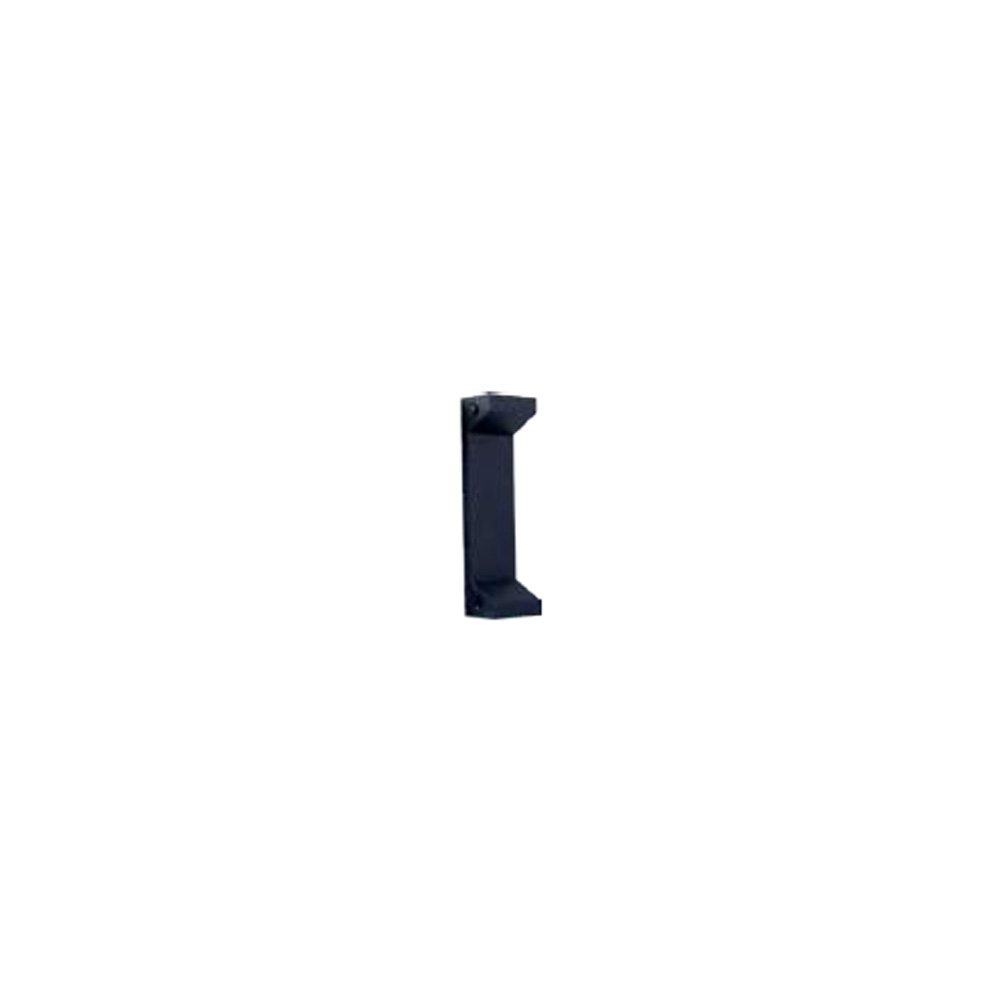

5525 US19
|
1" Lip Extension for 2400KIT/2402 Series |

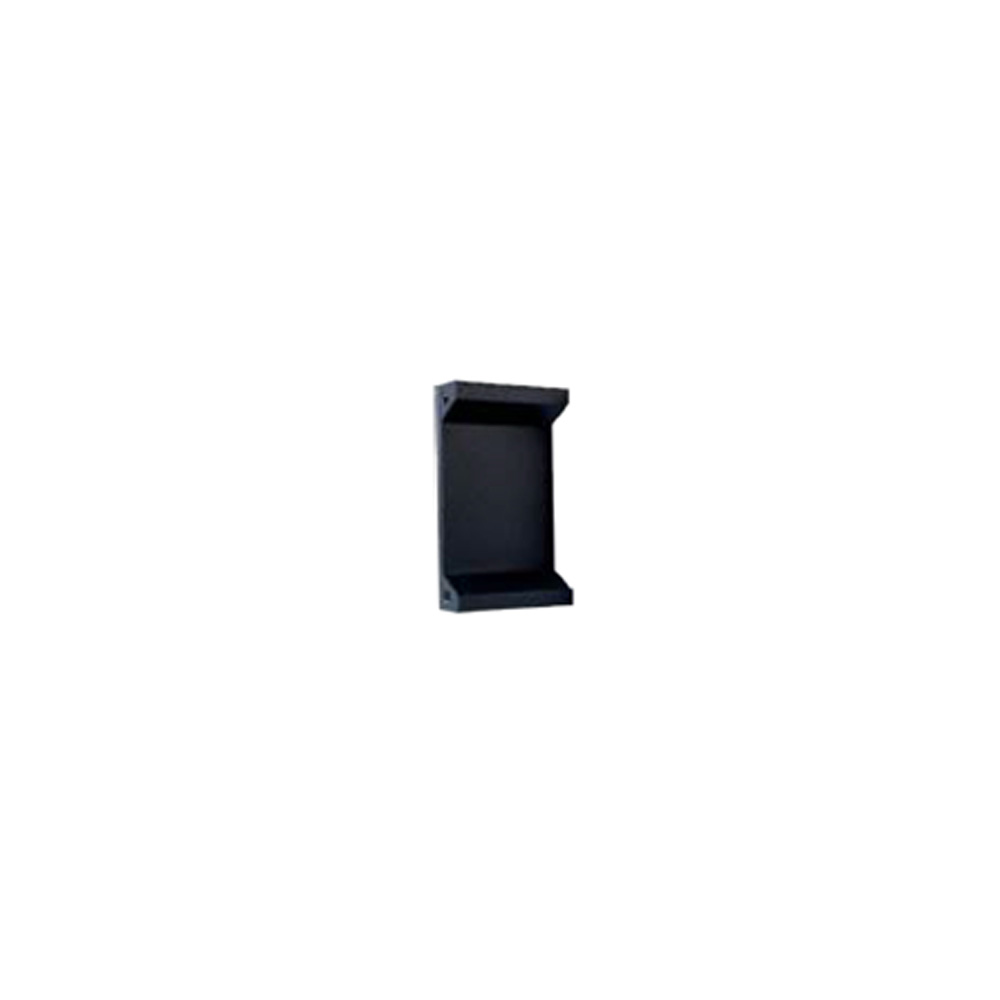

5550 US19
|
2" Lip Extension for 2400KIT/2402 Series |
