1506 Series
1506 · Mini ANSI Strikes
1506 Series

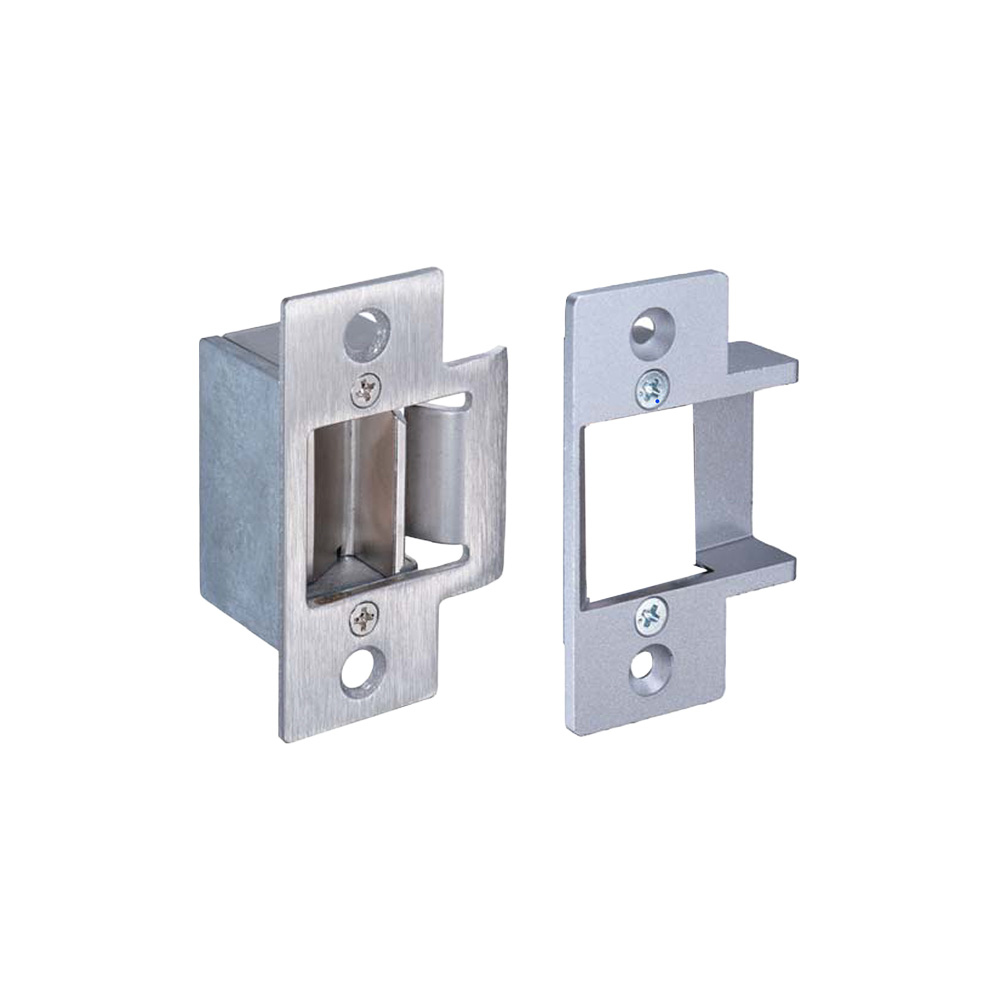

Quick and easy to install, these mini non-handed electric strikes offer dependable fail-secure performance in a compact, durable design. It accommodates a 1/2″ (13 mm) latch bolt and operates on 12 or 24 VDC for added flexibility.
Features
- For cylindrical locksets
- Stainless steel 'no cut' faceplate, US32D
- Cast 'low cut' faceplate, anodized silver
- Ultra compact, only 7/8" deep
- A range of AC and DC models
Specifications
| Lockset compatibility | Gr. 2 cylindrical |
|---|---|
| Prep / frame | ANSI Square metal |
| Latch projection | 1/2" (13 mm) |
| Operation | Fail Secure |
| Static strength | 1000 lb (454 kg) |
| Holding force | 800 lb |
| Dynamic strength | 50 ft-lbs (6.91 m-kg) |
| Endurance | 250,000 cycles |
| Voltage | 12/24 VDC, 8-16 VAC / 3-6 VDC |
| Current draw | 280 mA/12 VDC, 140 mA/24 VDC |
| Product dimensions | 2-3/4" x 1-1/16" x 7/8" |
| Country of origin | TWN |
| Warranty | 5 years |
Downloads
Documents
Models
| Item | Description |
|---|---|
1506-01 Kit
|
Mini Strike, 8-16 VAC/3-6 VDC, Fail Secure, US26D / Silver, With 2 Faceplates |
|
1506-05 Kit
|
Mini Strike, 2 Faceplates, 12 VDC, Fail Secure, US26D / Silver |
|
1506-08 Kit
|
Mini Strike, 2 Faceplates, 24 VDC, Fail Secure, US26D / Silver |
