8706 Series

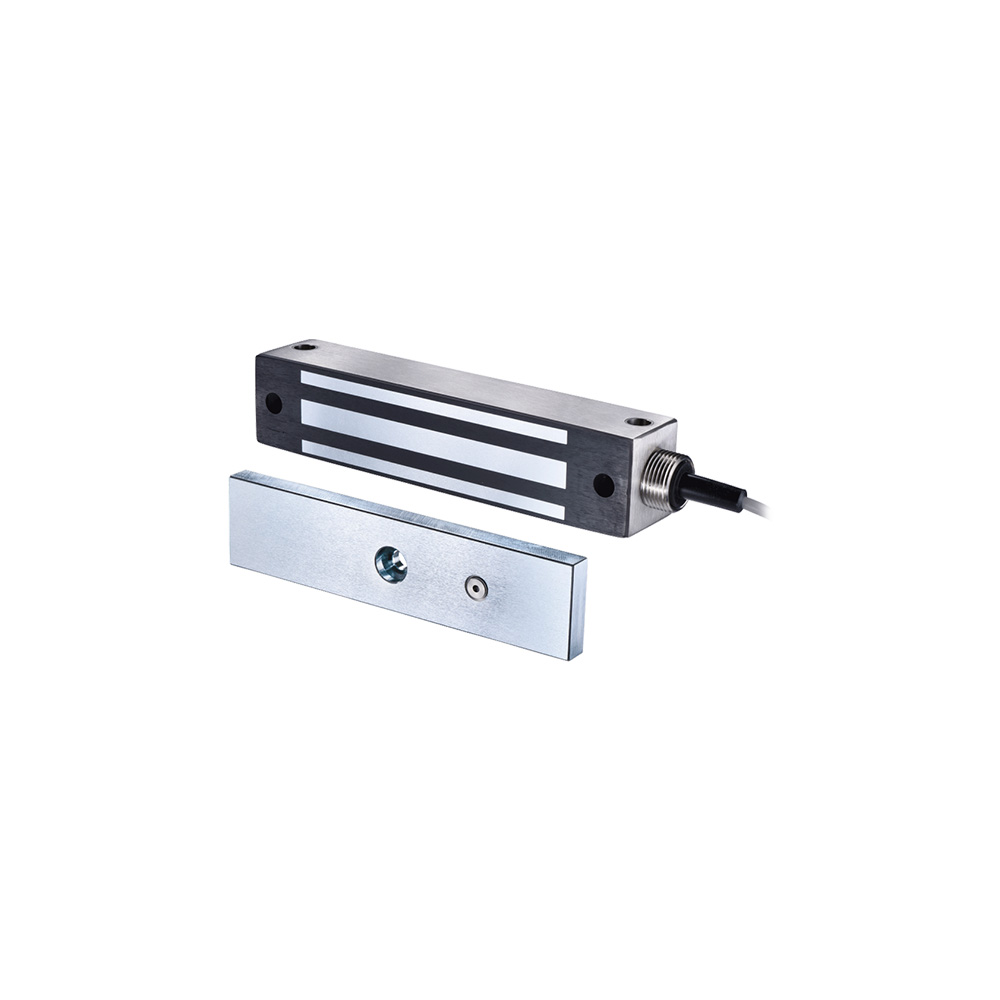

8706 · 600lbs Outdoor/Gate Magnetic Lock, UL
8706 Series
8706 Series Gate Locks are fail-safe and offer dual-mounting options. Optional L-brackets are available for sliding gates and outswing doors installations.
Features
- Stainless steel housing
- Front- and top-mounting for sliding and swing gates.
- Weatherproof, outdoor design
- Option for built-in bond sensor
- Option for stainless steel armour cable
Specifications
| Agency listings | UL10C Fire |
|---|---|
| Operation | Fail Safe |
| Holding force | 600 lb |
| Voltage | 12/24 VDC |
| Current draw | 500 mA/12 VDC, 250 mA/24 VDC |
| Number of contacts | 1.0 |
| Contact type | Form C (NO or NC) |
| Product dimensions | 8-11/16”x 1-11/16” x 1-9/16” |
| Country of origin | TWN |
| Warranty | 10 years |
Downloads
Documents
Models
Models
3 items
| Item | Description |
|---|---|
8706FT
|
600 lb Gate Maglock, 12/24 VDC |
|
8706FT-B
|
600 lb Gate Maglock w/ Bond Sensor, 12/24 VDC |
| 8706FT - KIT | 600 lb Gate maglock w/ conduit, Armored Flex Cable |
Accessory
2 items
| Item | Description |
|---|---|

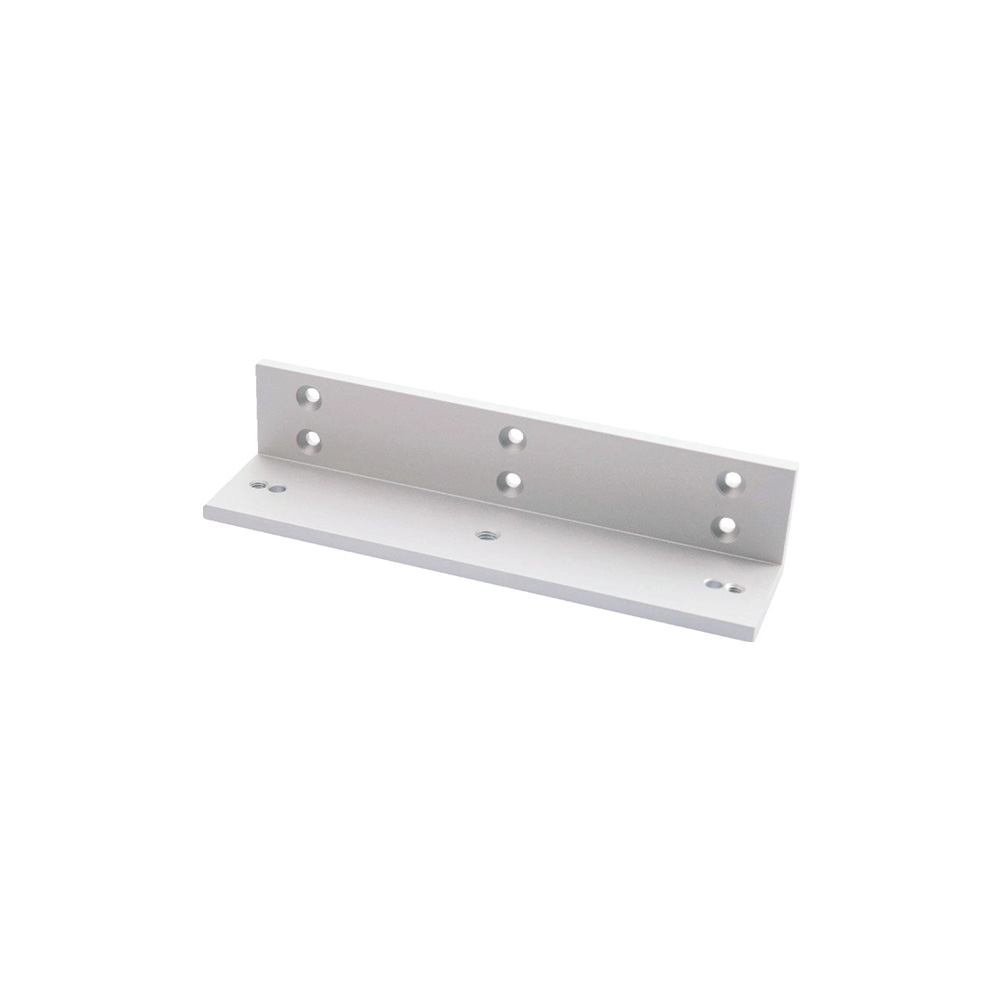

21034F
|
Front Mount L-Brackets for 8706FT-B |

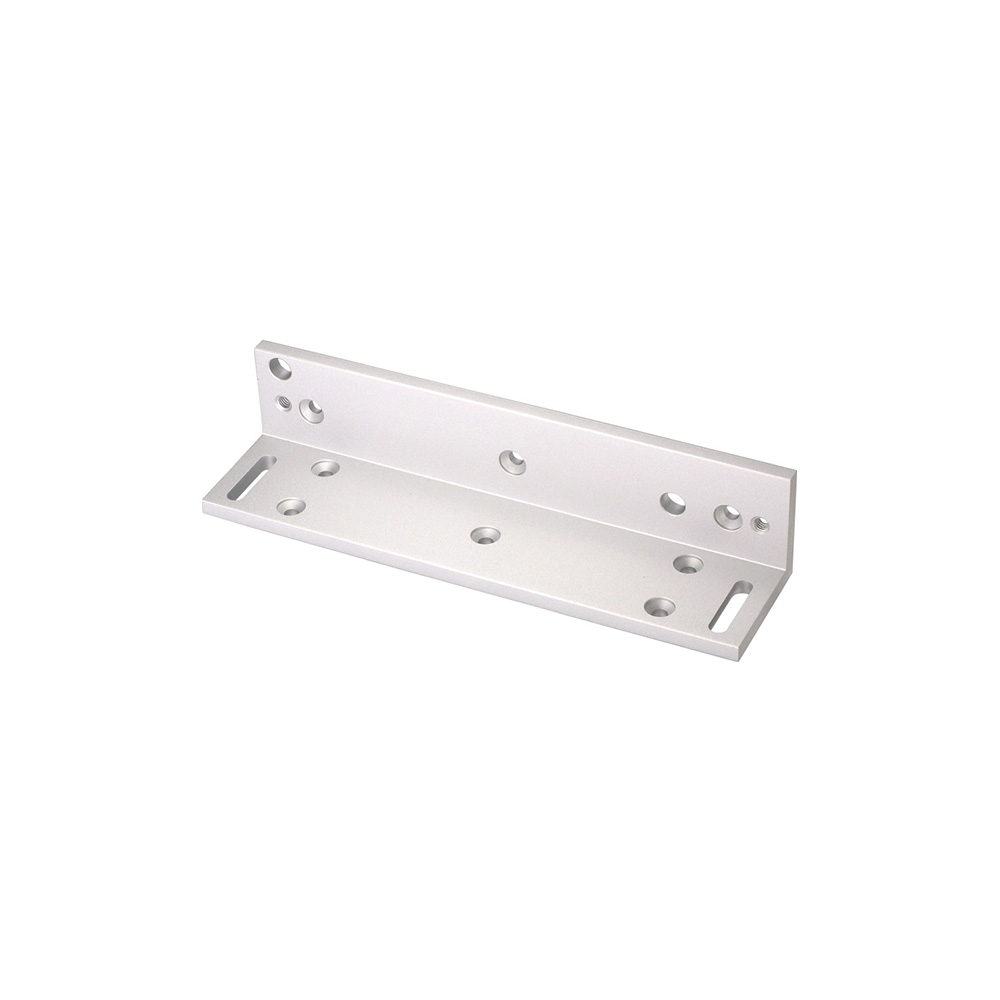

21034S
|
Surface Mount L-Brackets for 8706FT-B |
