8035 Series

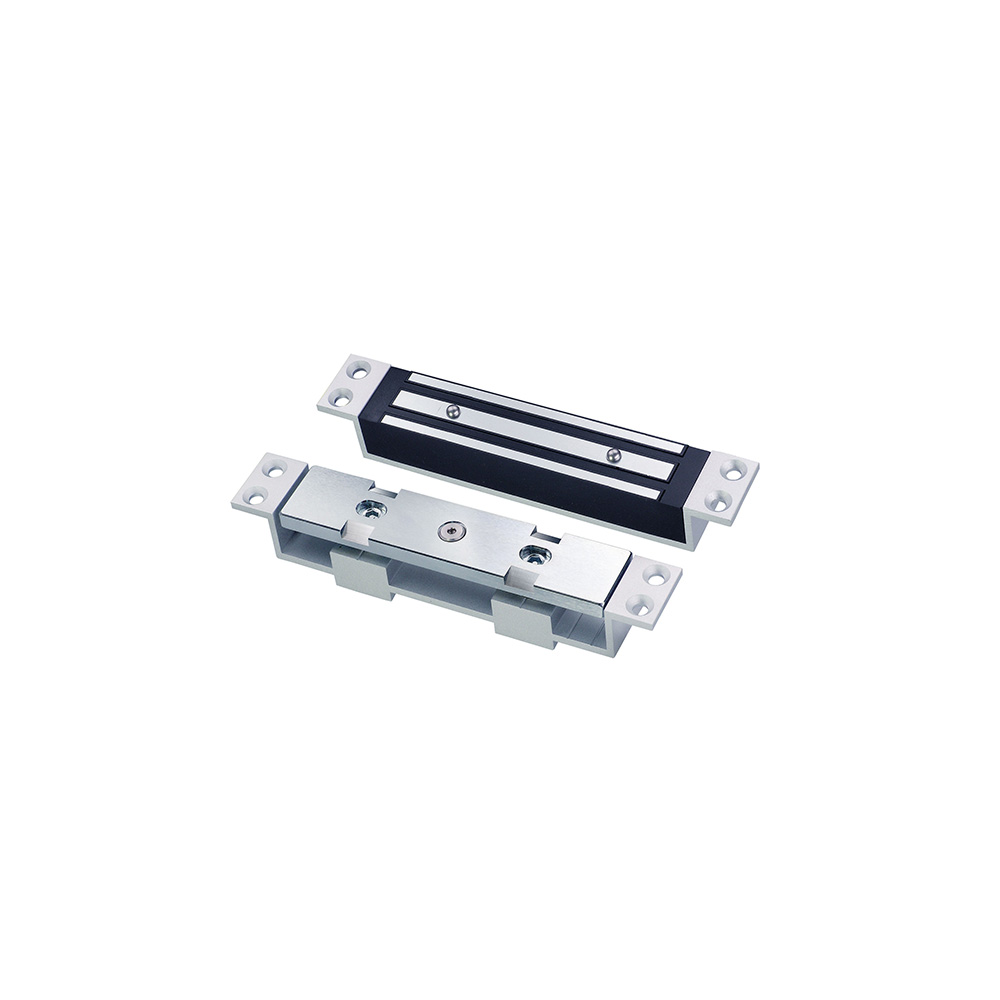

8035 Mini Shear Locks are fail-safe, 12/24 VDC selectable magnetic locks. The magnetic shear locks are compact solutions, designed for dual swinging interior doors and can be installed in horizontal or vertical position

Features

Ideal for dual swing doors & glass doors
Selectable relock delay
Horizontal or vertical mounting
Option for surface mount housing
Bolt monitor

Specifications

Agency listings	UL1034
Operation	Fail Safe
Holding force	1200 lb
Voltage	12/24 VDC
Current draw	420 mA/12 VDC, 210 mA/24 VDC
Number of contacts	1.0
Contact type	SPDT
Contact rating	0.5 A/125 VAC, 1 A/24 VDC
Product dimensions	7-1/16" x 1-3/16" x 1-11/16"
Warranty	5 years
