8031
8031 · Mortise, Non UL
8031

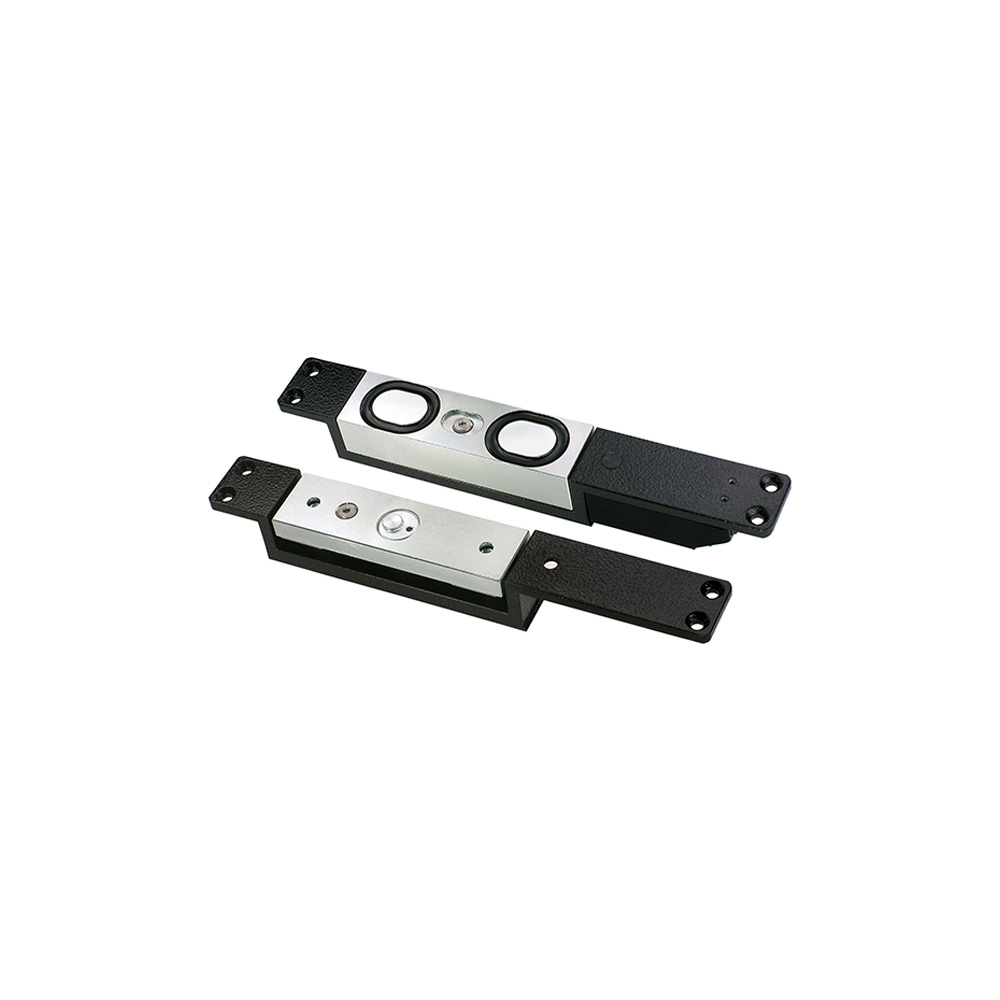

8031-002 Shear Locks feature 2200 LB holding force for enhanced security and SPDT relay output for remote monitoring. It is suitable for dual swinging doors, glass doors, in semi-surface and fully surface installation.
Features
- Ideal for dual swing doors & glass doors
- Selectable relock delay
- Horizontal or vertical mounting
- Option for surface mount housing
- Bolt monitor
Specifications
| Operation | Fail Safe |
|---|---|
| Holding force | 2200 lb |
| Voltage | 12/24 VDC |
| Current draw | 1.85 A/12 VDC, 1.1 A/ 24VDC |
| Number of contacts | 1.0 |
| Contact type | SPDT |
| Contact rating | 1 A @ 30 VDC |
| Product dimensions | 10-1/2" x 1-3/8" x 1-5/16" |
| Country of origin | TWN |
| Warranty | 5 years |
Downloads
Documents
Models
Models
1 item
| Item | Description |
|---|---|
8031-002
|
2200 lb Shear Lock w/ door monitor, Fail Safe, 12/24 VDC |
Accessory
4 items
| Item | Description |
|---|---|
21059
|

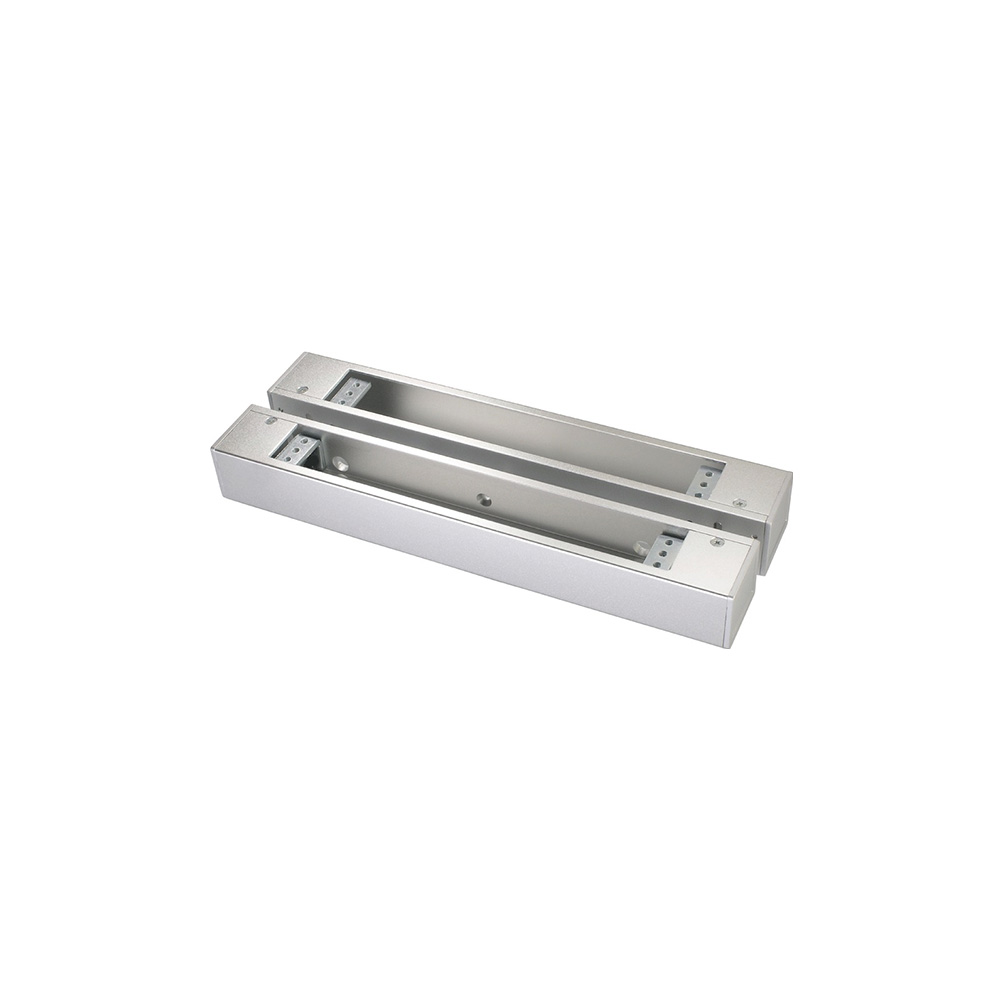

Surface Housing for 8031 Shear lock |
21036
|

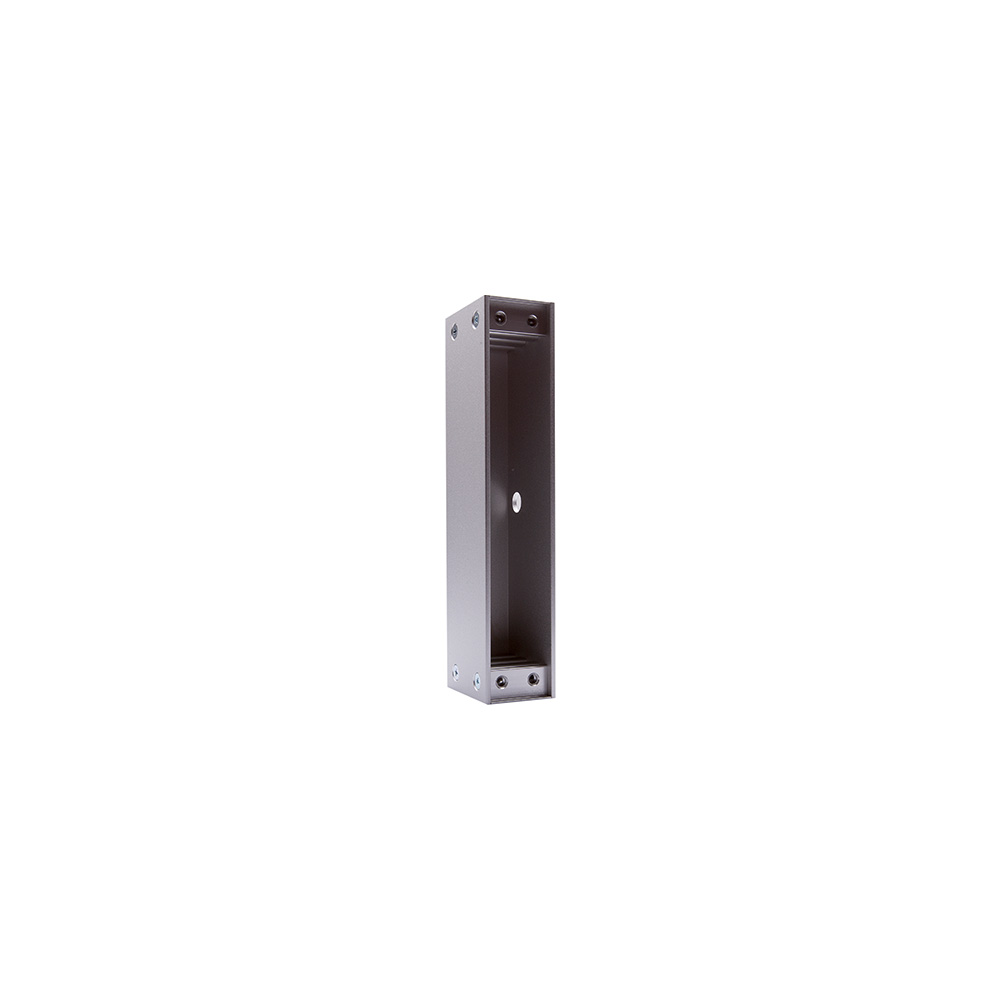

Surface Mounted Housing (Pair) for 8035 |
21037
|

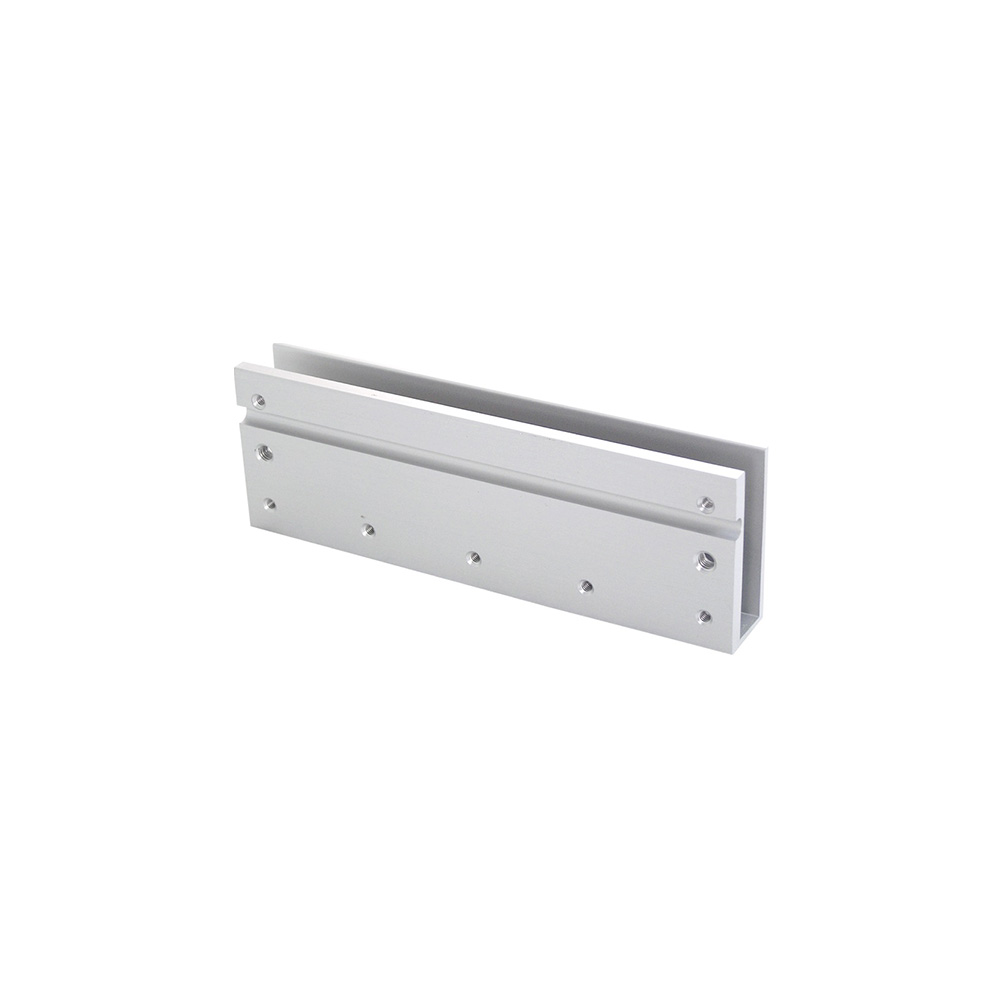

U-Brackets for 8035 Maglock |
21054
|

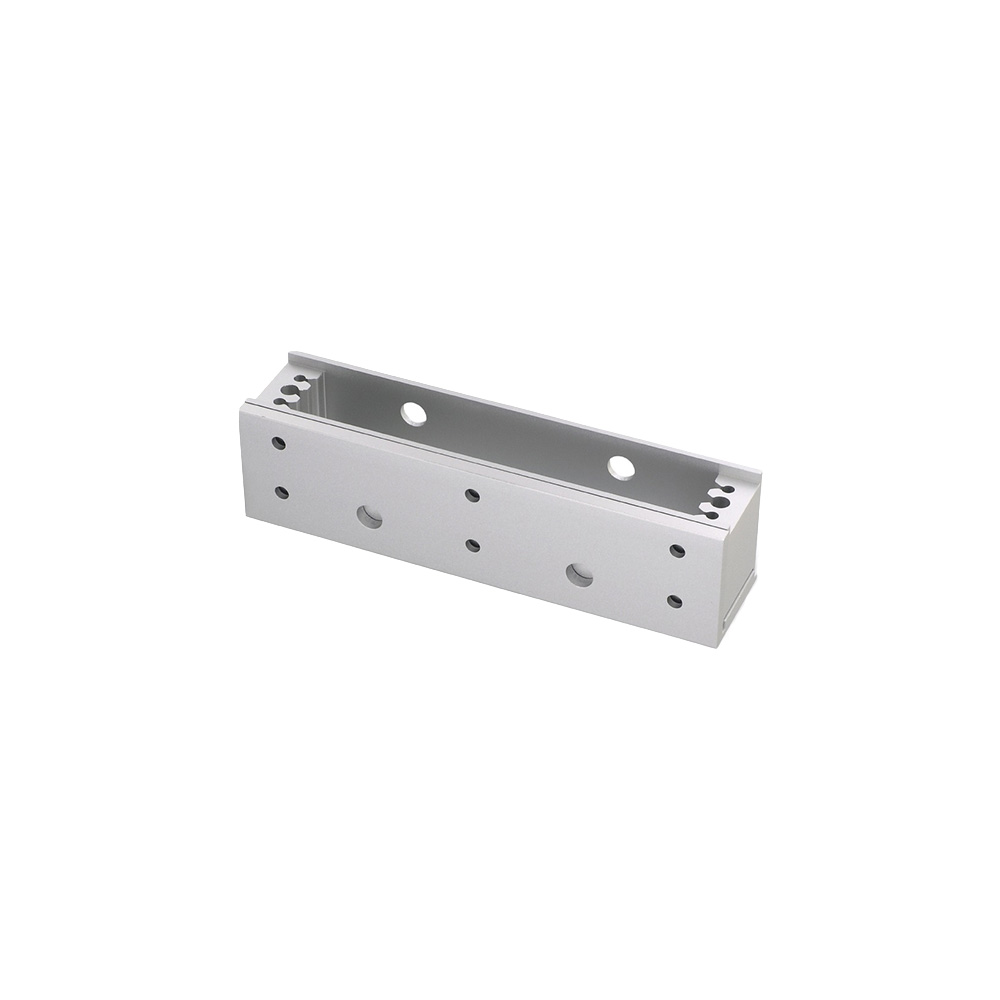

Tamperproof Housings (Set) for 8035 |
