2675 · 3/4" Surface RIM Fire Strikes, UL
2675 Series

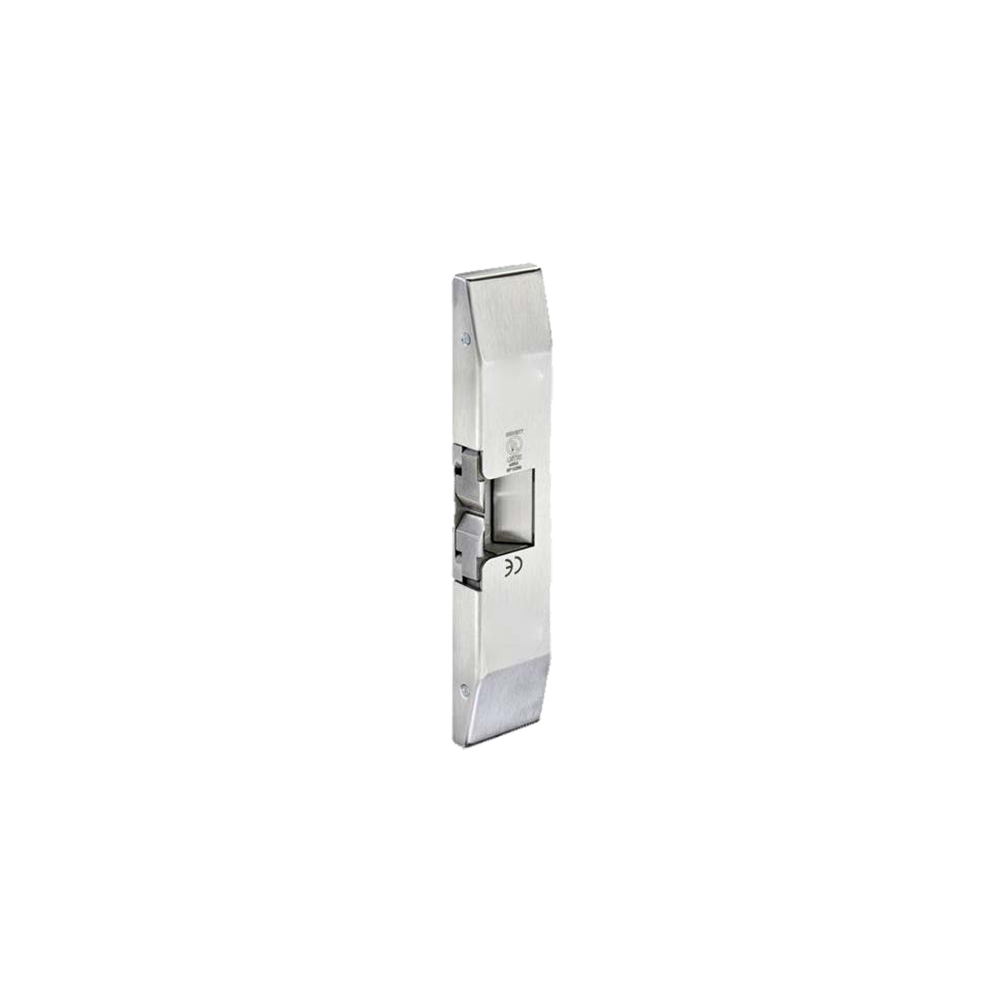

The 2675FR is a surface-mount fire-rated rim-mount strike designed with strength and durability for rim exit devices with a 3/4” pull-man latch throw.
Features
- For standard RIM exit devices
- Heavy duty stainless steel constuction
- Universal features; dual voltage & fail-safe/fail-secure
- (2) 1/8" spacers
- Option for US19 Black finish
Specifications
| Lockset compatibility |
Most RIM Exit Devices |
| Prep / frame |
Metal or wood frame |
| Latch projection |
3/4" |
| Agency listings |
UL294, UL1034, UL10C, ULCS104 |
| Operation |
Fail Safe / Fail Secure |
| Static strength |
1500 lb (680 kg) |
| Holding force |
1500 lb |
| Dynamic strength |
70 ft-lbs (9.67 m-kg) |
| Endurance |
250,000 cycles |
| Voltage |
12/24 VDC |
| Current draw |
540 mA/12 VDC, 270 mA/24 VDC |
| Product dimensions |
9" x 1-3/4" x 1/2" |
| Country of origin |
TWN |
| Warranty |
5 years |
Downloads
2675FR US32D

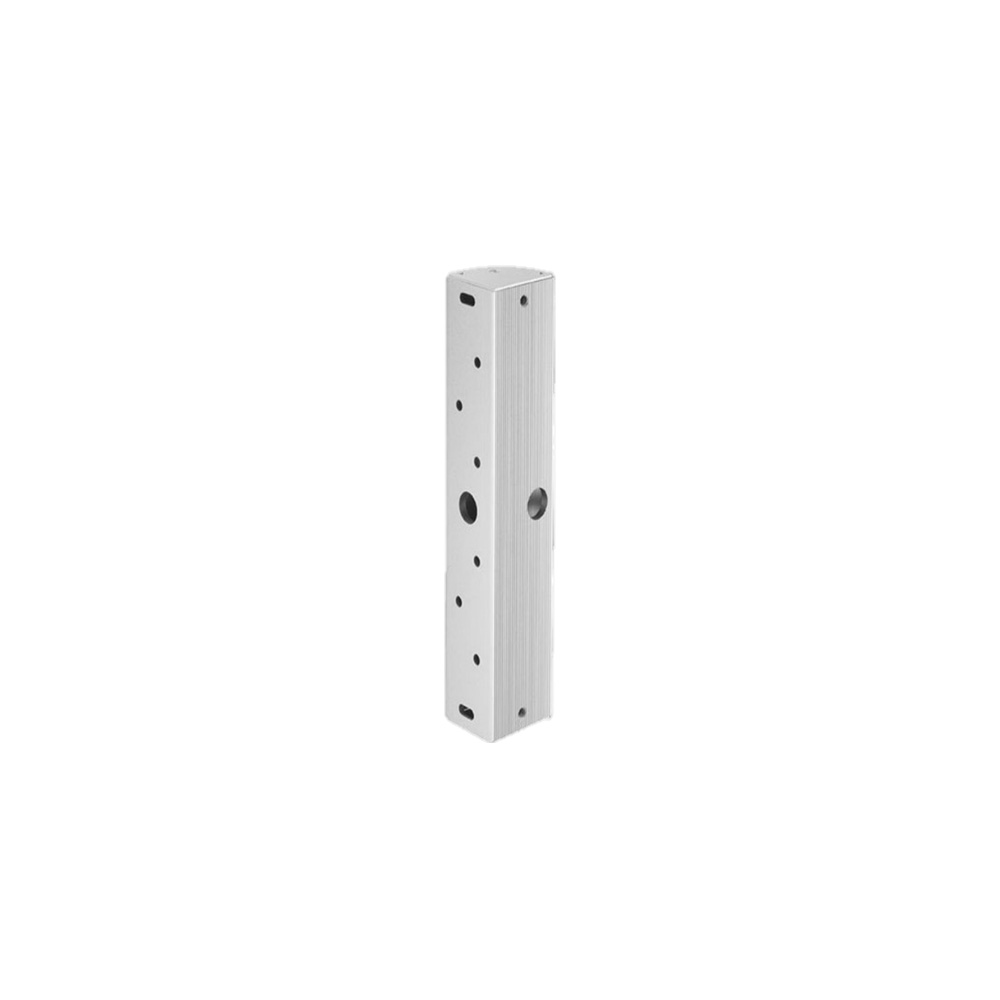

2675-SMB
