2460 Series

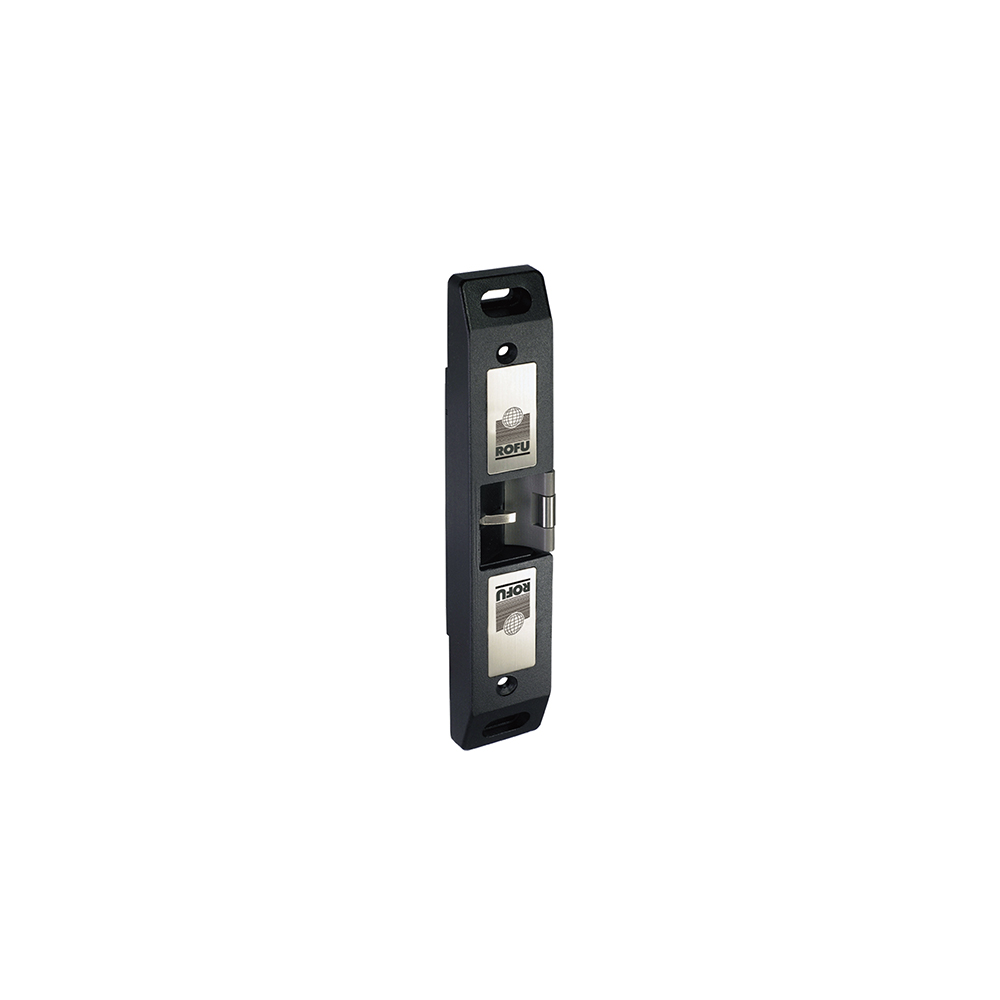

2460 Rim Mount Strike is a partial surface mount electric strike designed for doors with RIM Exit Devices. Latch and lock status monitoring is standard for 2460, and the strike operates at 12~28 VDC/VAC. The strike can be easily reversed between fail-safe and fail-secure.

Features

For standard RIM exit devices
Smooth and quiet operation
Latch and Keeper monitoring
Cast alloy construction
1 Million cycles factory tested

Specifications

Lockset compatibility	Most RIM Exit Devices
Prep / frame	Metal or wood frame
Latch projection	11/16"
Operation	Fail Secure
Static strength	1500 lb (680 kg)
Holding force	1500 lb
Dynamic strength	70 ft-lbs (9.67 m-kg)
Endurance	250,000 cycles
Voltage	12 to 28 VAC/DC
Current draw	440 mA/12 VAC, 230 mA/28 VAC
Product dimensions	3-1/2" x 1-7/16" x 2-5/8"
Country of origin	TWN
Warranty	5 years
