8406 · 600lbs Mini Magnetic Lock
8406 Series

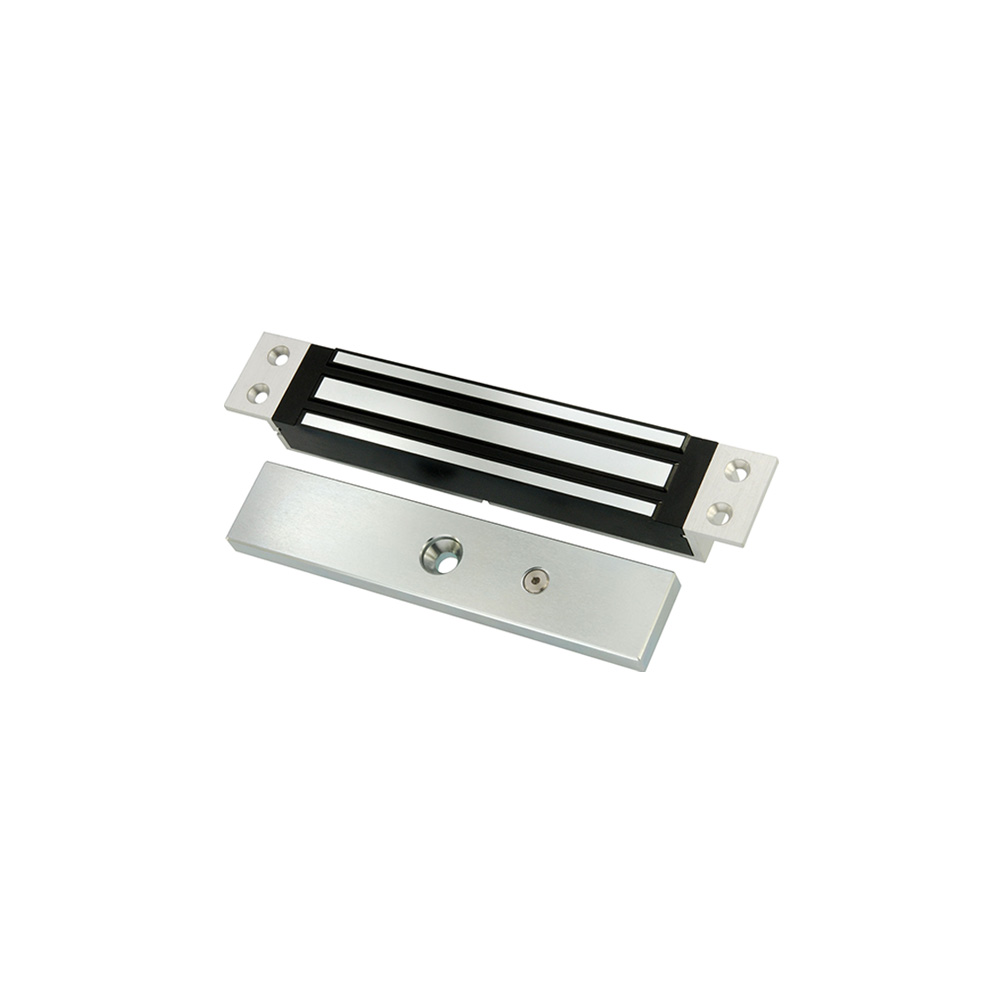

8406M Mini Sliding Door Electromagnet is a compact mortise maglock made with steel housing and is a durable option for high frequency use
Features
- Compact, with steel housing
- Ideal for sliding door and swing doors
- Mostise mount magnet and armature plate
- No residual magnatism

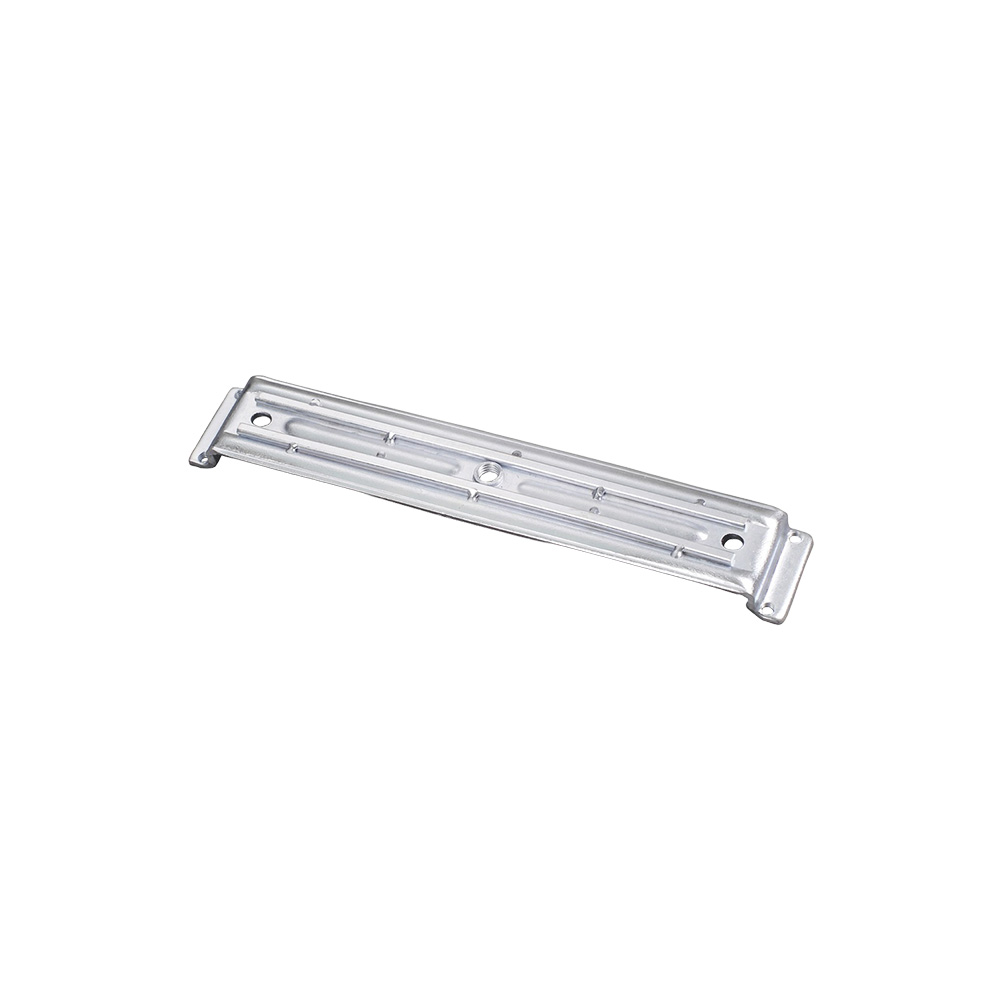

- Armature mounting bracket option
Specifications
| Operation |
Fail Safe |
| Holding force |
600 lb |
| Voltage |
12/24 VDC |
| Current draw |
500 mA/12 VDC, 250 mA/24 VDC |
| Product dimensions |
7-1/2” x 1-1/2“ x 1-1/8” |
| Country of origin |
TWN |
| Warranty |
10 years |
