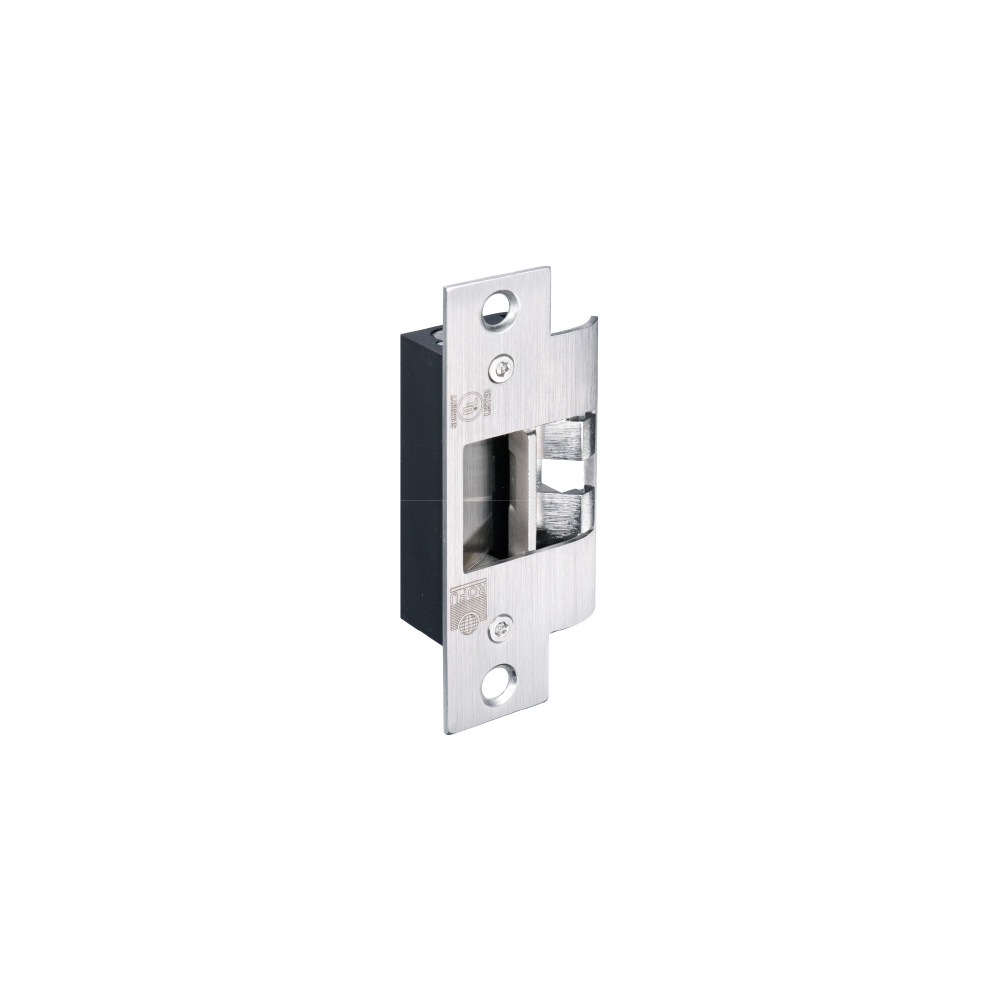

2420 Series

The 2420 Series ANSI electric strikes are designed for use with cylindrical locksets and can be installed on metal and wood door frames. The strikes can be configured to fail-safe or fail-secure on site.

Features

For cylindrical locksets
No frame cutting is required
Non-Handed
Stainless steel faceplate

Specifications

Lockset compatibility	Gr. 2 cylindrical
Prep / frame	ANSI Square, metal
Latch projection	9/16"
Agency listings	UL294
Operation	Fail Safe / Fail Secure
Static strength	1500 lb (680 kg)
Holding force	1500 lb
Dynamic strength	70 ft-lbs (9.67 m-kg)
Endurance	100,000 cycles
Voltage	12/24 VDC
Current draw	300 mA/12 VDC, 150 mA/24 VDC
Product dimensions	4-7/8” x 1-1/4” x 1-1/16”
Country of origin	TWN
Warranty	5 years
