8712 Series

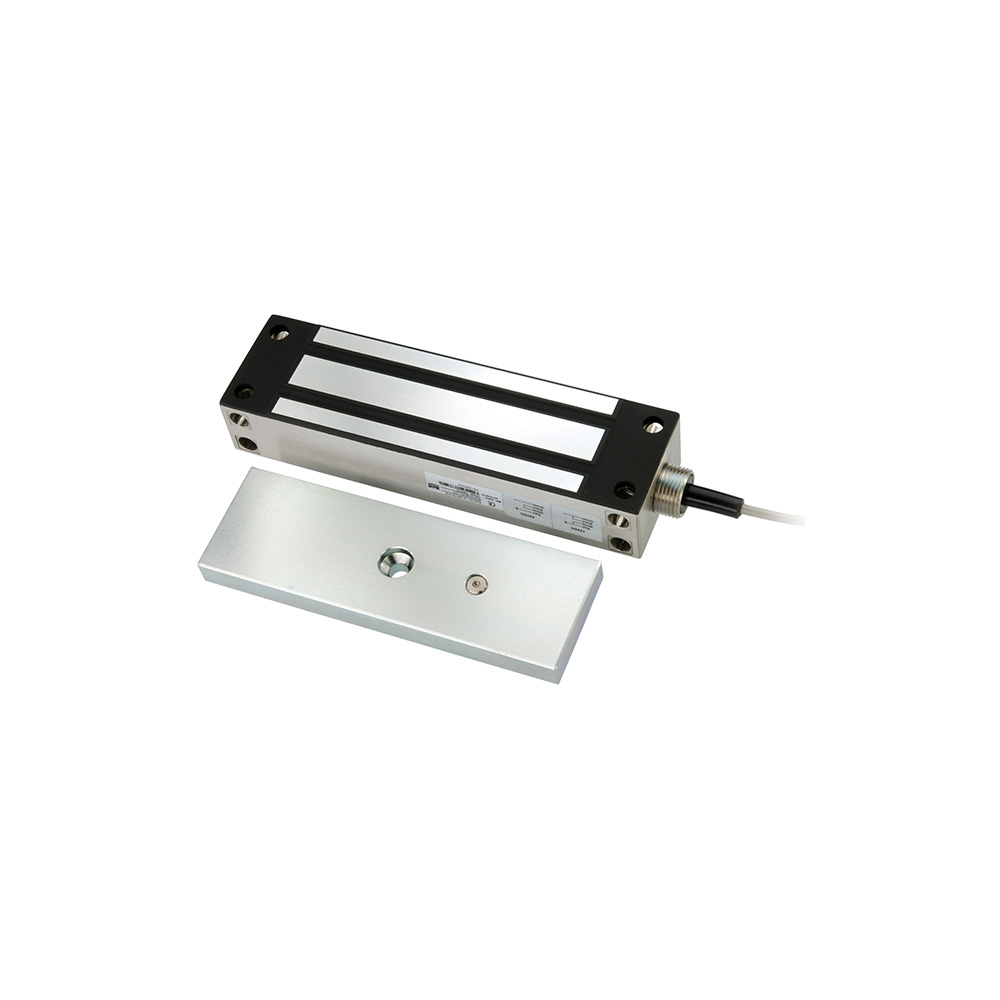

8712 · 1200lbs Outdoor/Gate Magnetic Lock, UL
8712 Series
8712 Series Gate Locks are fail-safe and offer dual-mounting options. Optional L-brackets are available for sliding-gate and outswing-door installations.
Features
- Stainless steel housing
- Front- and top-mounting for sliding and swing gates.
- Weatherproof, outdoor design
- Option for built-in bond sensor
- Option for stainless steel armour cable
Specifications
| Agency listings | UL10C Fire |
|---|---|
| Operation | Fail Safe |
| Holding force | 1200 lb |
| Voltage | 12/24 VDC |
| Current draw | 500 mA/12 VDC, 250 mA/24 VDC |
| Number of contacts | 1.0 |
| Contact type | Form C (NO or NC) |
| Product dimensions | 8-11/16”x 2-7/16” x 1-9/16” |
| Country of origin | TWN |
| Warranty | 10 years |
Downloads
Documents
Models
Models
4 items
| Item | Description |
|---|---|
8712-B-12
|
1200 lb Gate Maglock w/Bond Sensor, 12 VDC |
|
8712FT
|
1200 lb Gate Maglock 12/24 VDC. |
|
8712FT-B
|
1200 lb Gate Maglock w/Bond Sensor, 12/24 VDC |
| 8712FT - KIT | 1200 lb Gate maglock w/ conduit, Armored Flex Cable |
Accessory
3 items
| Item | Description |
|---|---|
| 10385HD-C | Armored Flex Conduit, 33-1/4" for 8712 |

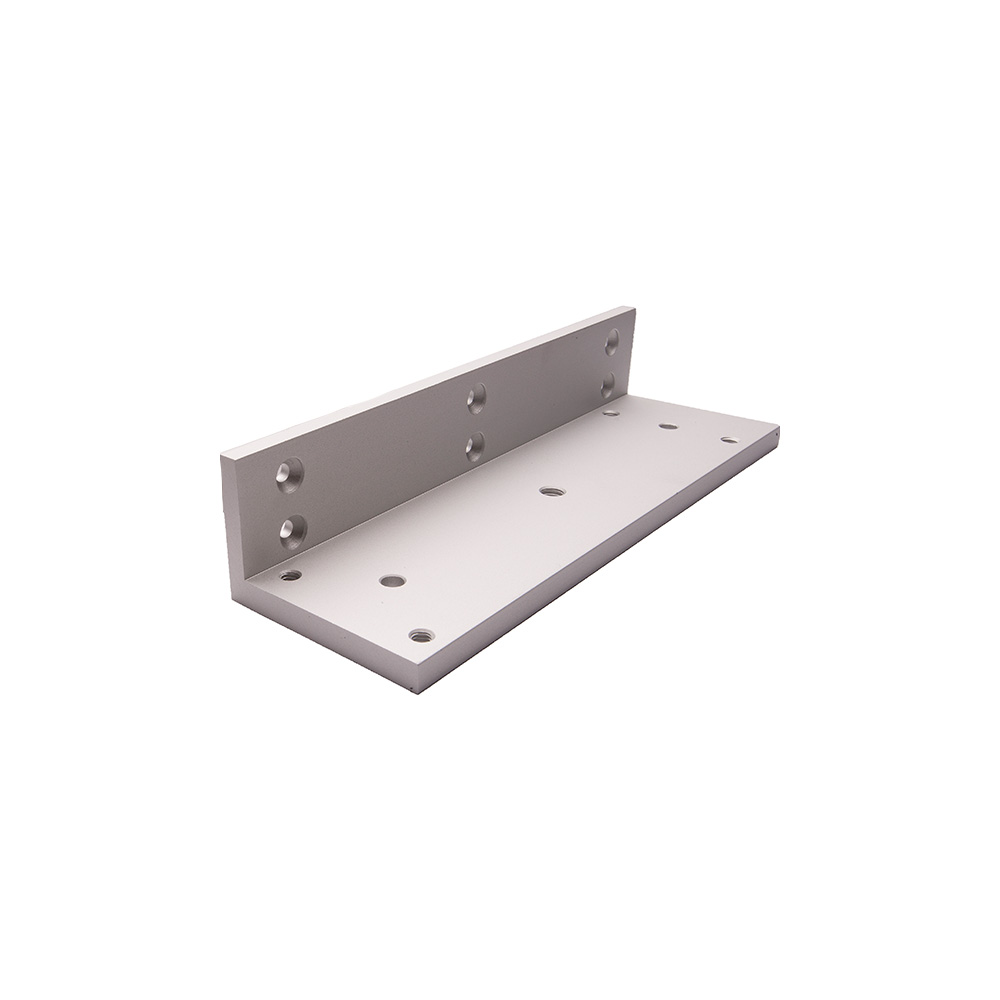

21035
|
L Brackets (Pair) for 8712 models. |

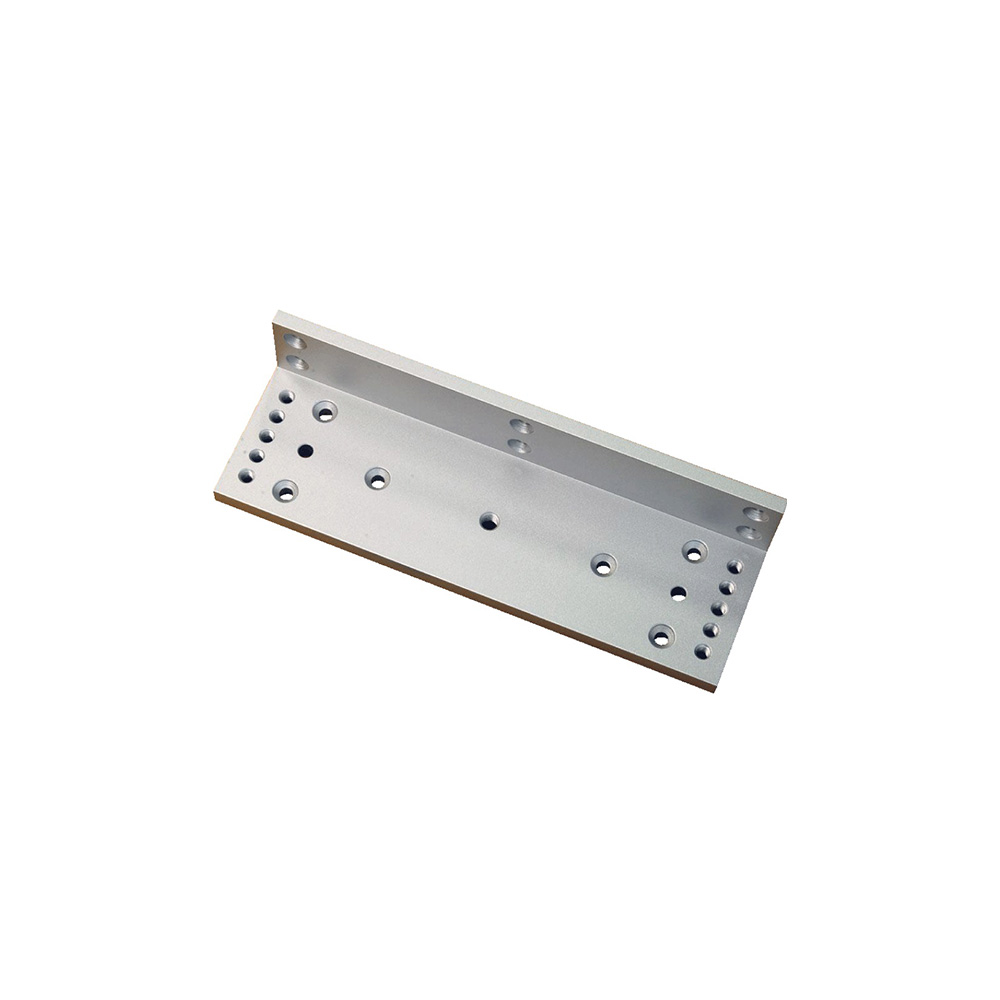

21035FS
|
L-Brackets for 8700 Models |
