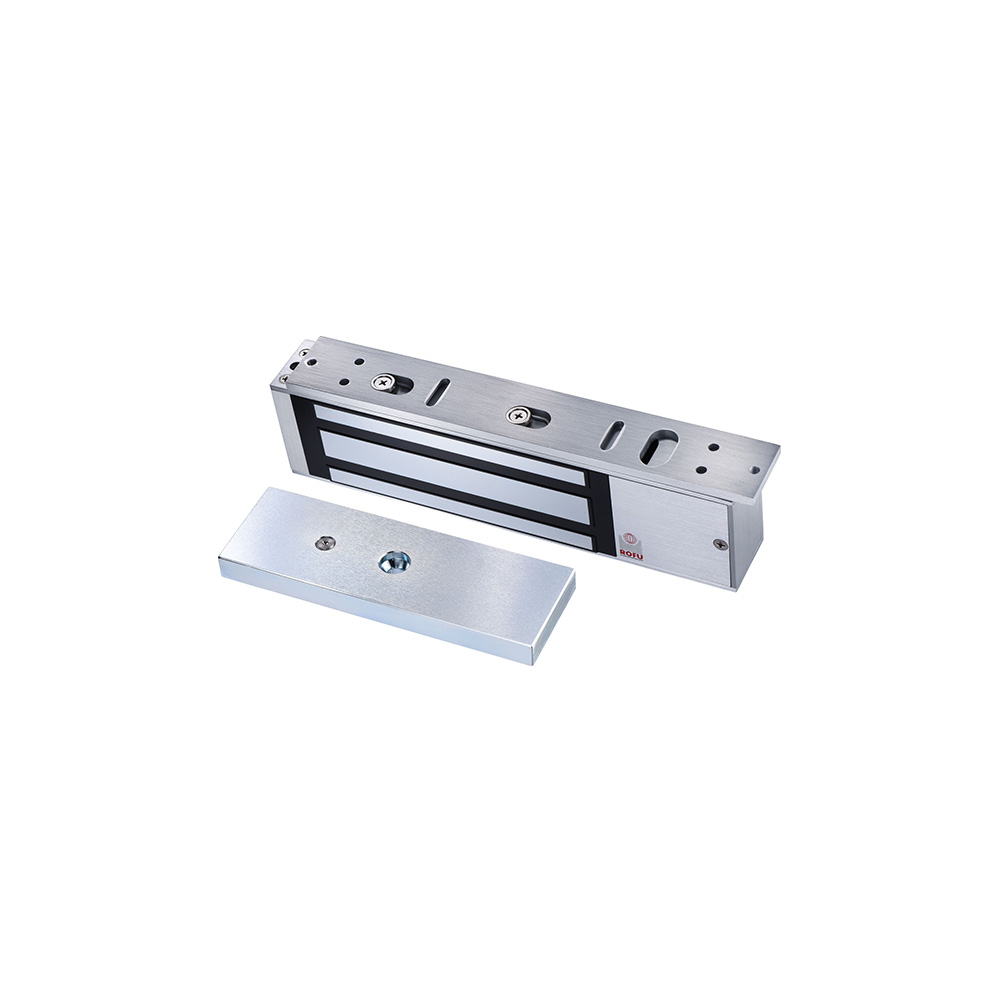

8512 Series
8500 · 1200lbs Surface Mount Magnetic Lock
8512 Series
8512 Series offers 1- and 2-door models with quick, easy keyhole mounting that slides into place. It features built-in MOV spike and surge protection, ensures no residual magnetism for reliable release, and is housed in durable anodized extruded aluminum.
Features
- Best quality and value
- Heavy duty anodized aluminium construction
- One and two door models
- MOV Surge protection std., option for lightning protection
- A complete range of mounting brackets
Specifications
| Operation | Fail Safe |
|---|---|
| Holding force | 1200 lb |
| Voltage | 12/24 VDC |
| Current draw | 500 mA/12 VDC, 250 mA/24 VDC |
| Product dimensions | 8512:10-1/2” x 1-9/16” x 2-11/16” 8512-2: 21” x 1-9/16” x 2-11/16“ |
| Country of origin | TWN |
| Warranty | 10 years |
Downloads
Documents
Models
Models
7 items
| Item | Description |
|---|---|
8512-B
|
1200 lb Maglock w/ Bond Sensor, 12/24 VDC |
|
8512-LC
|
1200 lb Maglock, 12/24 VDC |
| 8512-LC US19 | 1200 lb Maglock, 12/24 VDC, US19 |

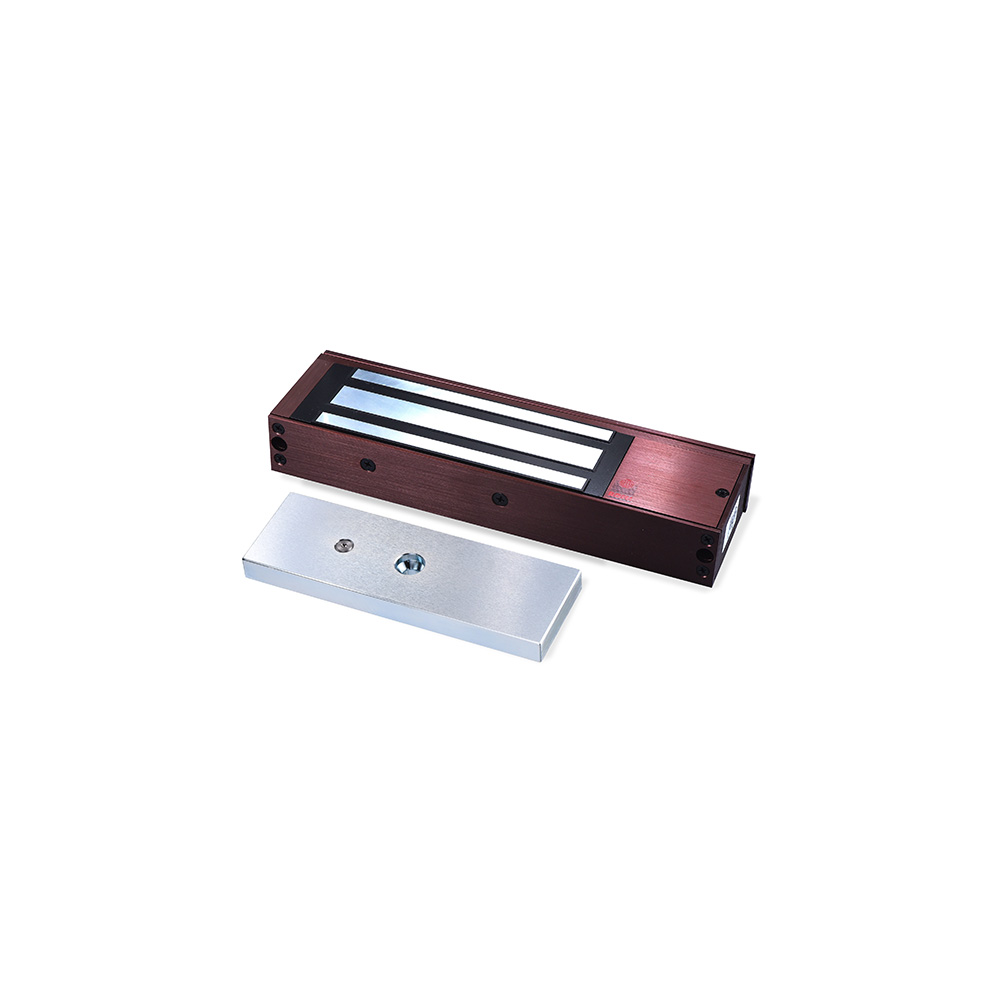

8512-LC US40
|
1200 lb Maglock, 12/24 VDC, US40 |
| 8512-2-B | 1200 lb x 2 Maglock w/Bond Sensor, 12/24 VDC |
| 8512-2-B US40 | 1200 lb x 2 Maglock w/ Bond Senor, 12/24 VDC,US40 |
|
8512-20993
|
1200 lb Maglock w/ Lightning Protection, 20993 surge suppressor , 12/24 VDC |
Accessory
4 items
| Item | Description |
|---|---|

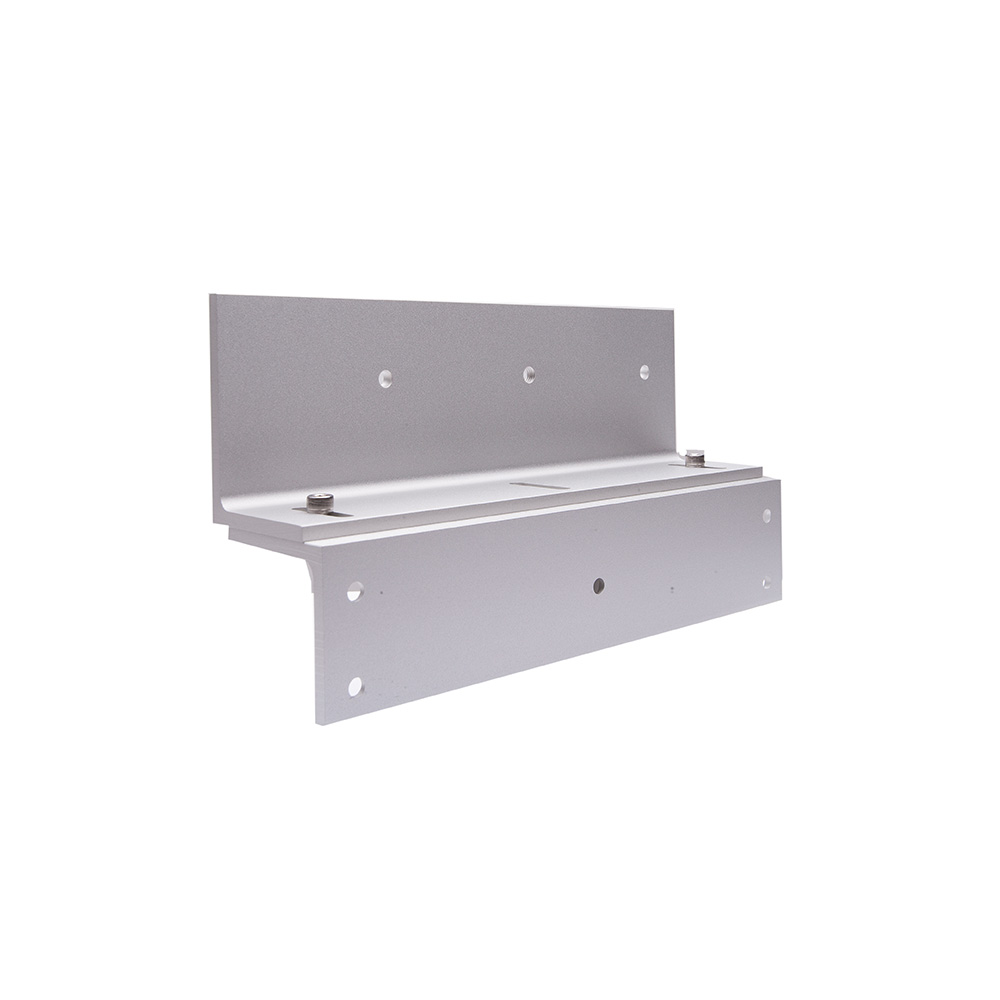

21031
|
Z-Bracket for 1200 lb Maglock |
| 21031 US40 | Z-Bracket for 1200 lb Maglock, US40 |

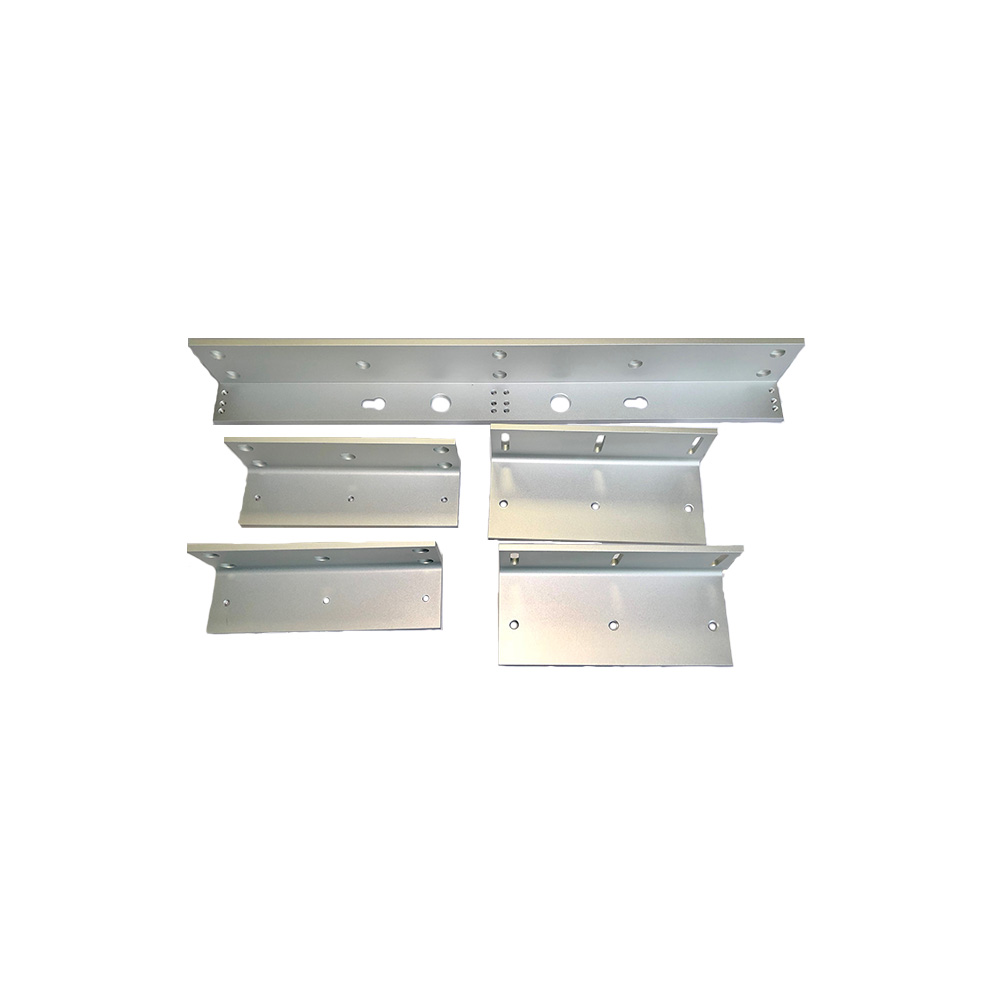

21033
|
Z-Bracket for 1200 lb x 2 Maglocks |

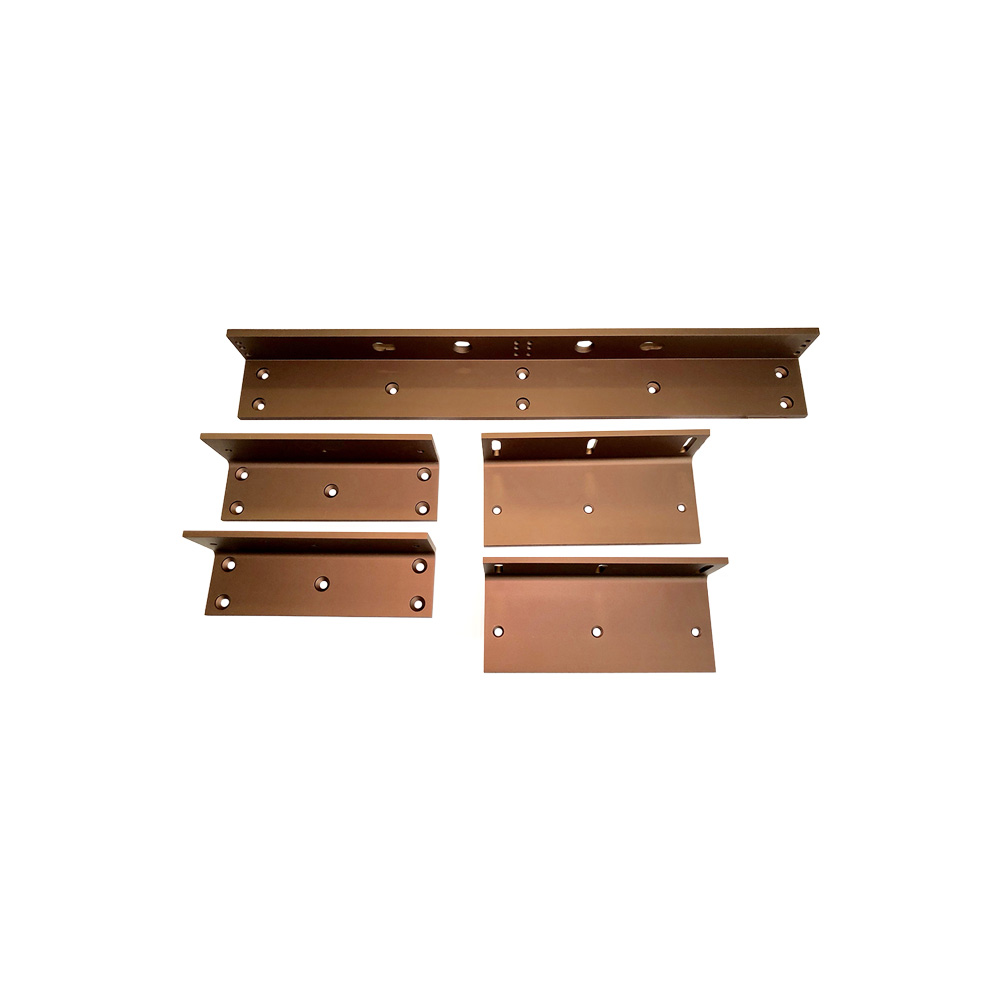

21033 US40
|
Z-Bracket for 1200 lb x 2 Maglocks, US40 |
