2435 Series

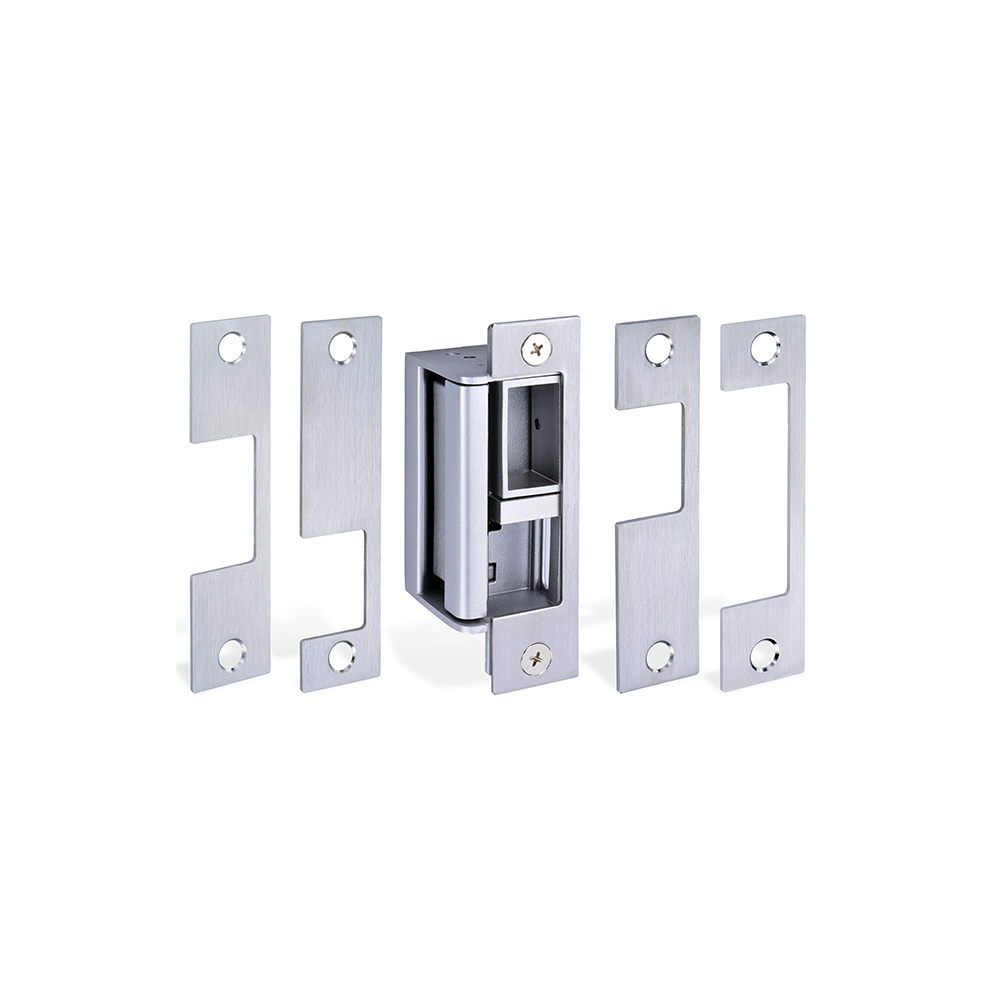

2435 Kit, complete with five heavy duty stainless steel faceplates, is designed for mortise and cylindrical locksets. It is reversible for left hand or right hand installation and operates at 12 and 24 VDC.

Features

For cylindrical and mortise locksets
Universal 'All in One' design
Patented vertical adjustment
1/8" keeper shims for horizontal adjustment
1 Million cycles factory tested

Specifications

Lockset compatibility	Gr. 2 cylindrical & mortise
Prep / frame	Faceplates for latch & dealbolts
Latch projection	7/8"
Agency listings	UL294, UL1034
Operation	Fail Safe / Fail Secure
Static strength	1500 lb (680 kg)
Holding force	1500 lb
Dynamic strength	70 ft-lbs (9.67 m-kg)
Endurance	250,000 cycles
Voltage	12/24 VDC
Current draw	250 mA/12 VDC, 150 mA/24 VDC
Product dimensions	4-7/8" x 1-5/8" x 1-13/16"
Country of origin	TWN
Warranty	5 years
