1106 Series
1106 · Outdoor (Gate) Strikes
1106 Series
1106 Series Strikes are fail-secure, weatherproof electric strike for gate locks. One piece strike body made of cast zinc alloy, suitable for cylindrical and mortise locksets and for hollow metal and wood frame doors.
Features
- For cylindrical and mortise locksets
- Weatherproof, one-piece strike body
- Non-Handed
- US28 (silver) & US4, bronze finishes
- A range of AC and DC models
Specifications
| Lockset compatibility | Gr. 2 cylindrical & mortise |
|---|---|
| Prep / frame | Hallow metal |
| Latch projection | 9/16" |
| Operation | Fail Secure |
| Static strength | 1000 lb (454 kg) |
| Holding force | 1000 lb |
| Dynamic strength | 50 ft-lbs (6.91 m-kg) |
| Endurance | 250,000 cycles |
| Voltage | 12/24 VDC, 8-16 VAC / 3-6 VDC |
| Current draw | 500 mA/12 VDC 1 A/24 VDC |
| Product dimensions | 3-1/2" x 1-7/16" x 2-5/8" |
| Country of origin | TWN |
| Warranty | 5 years |
Downloads
Documents
Models
| Item | Description |
|---|---|
1106-01 US28
|
Gate Strike, 8-16 VAC, Fail Secure, US28 |

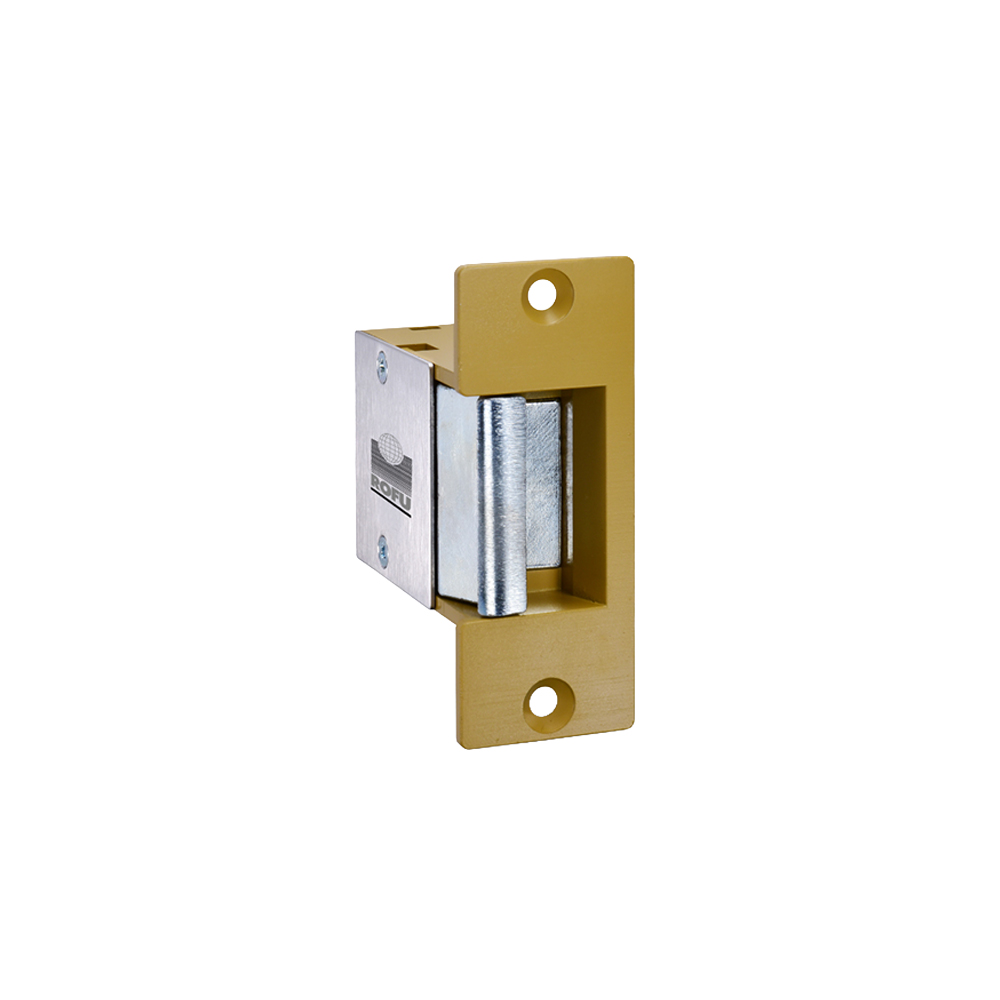

1106-01 US4
|
Gate Strike, 8-16 VAC, Fail Secure, US4 |

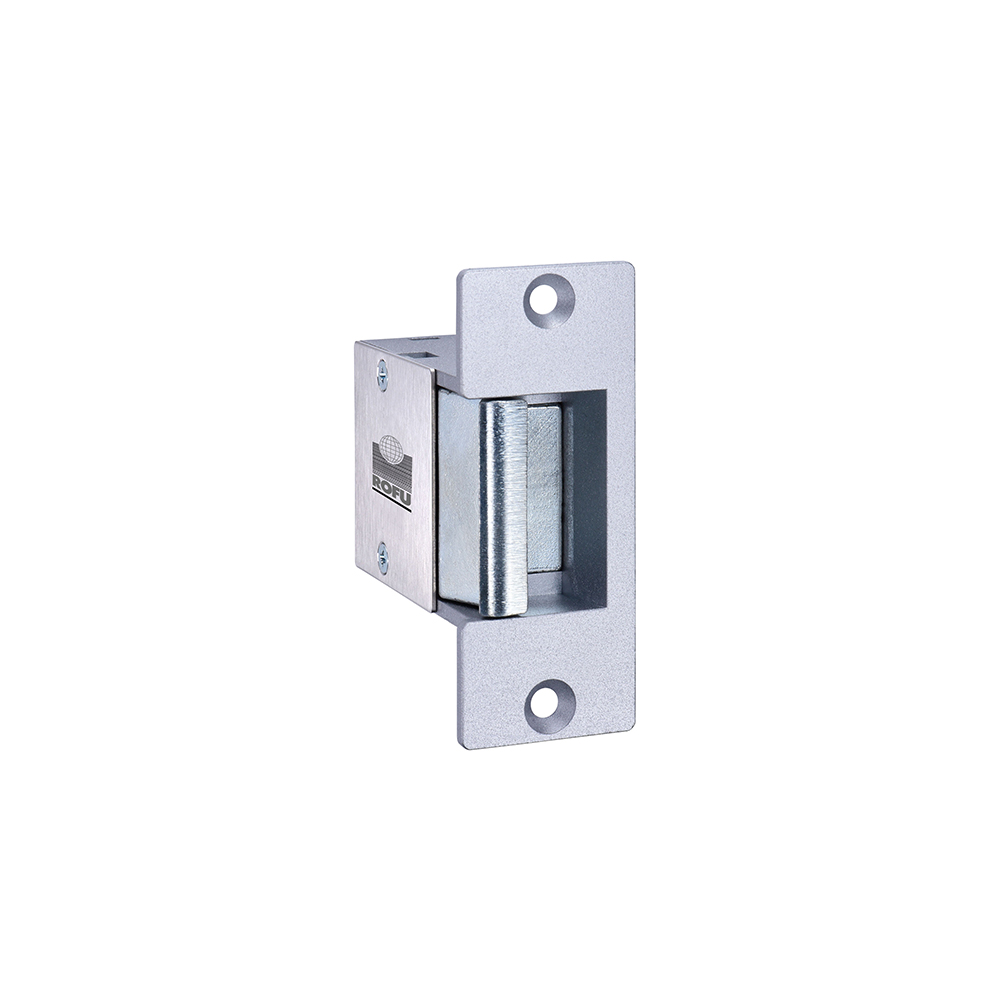

1106-02 US28
|
Gate Strike, 12/24 VAC/VDC, Fail Secure, US28 |
