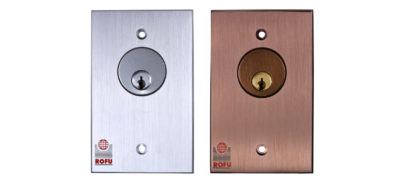

9200 SPDT key switches are compatible with standard architectural size cylinders. Complete with durable and tamper-resistant 1/4” thick aluminum cover plates and are supplied with 2 snake eyes security screws and wrench.

• Standard Plate (4 3/4” x 3” x 1/4”)
• Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
• Cylinders are not included
• Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

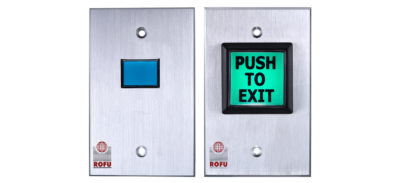

9300 REX switches are blue colored DPDT push buttons (except 9350 & 9370) with durable and tamper-resistant 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.

• Standard Plate (4 3/4” x 3” x 1/4”)
• Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
• UL Recognized Components
• Blue Colored Push Button
• Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

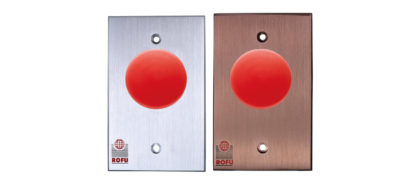

9400 REX switches feature 1 1/2” red mushroom buttons with durable and tamper-resistant, 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.

• Standard Plate (4 3/4” x 3” x 1/4”)
• Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
• UL Recognized Components.
• Rating: 3A/240V
• Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

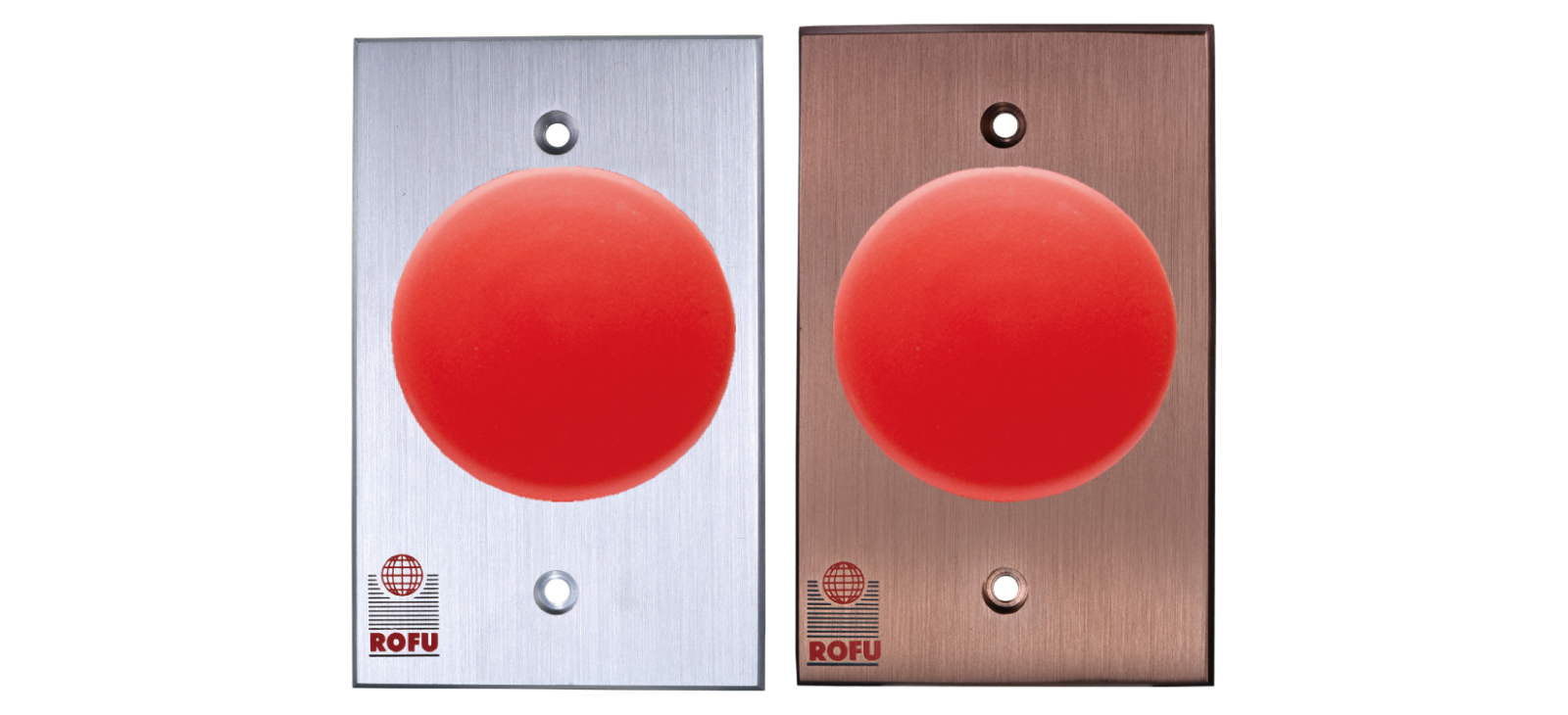

9600 REX switches feature 2 3/8” red mushroom buttons with durable and tamper-resistant, 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.

• Standard Plate (4 3/4” x 3” x 1/4”)
• Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
• UL Recognized Components
• Rating: 3 A /240 V
• Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

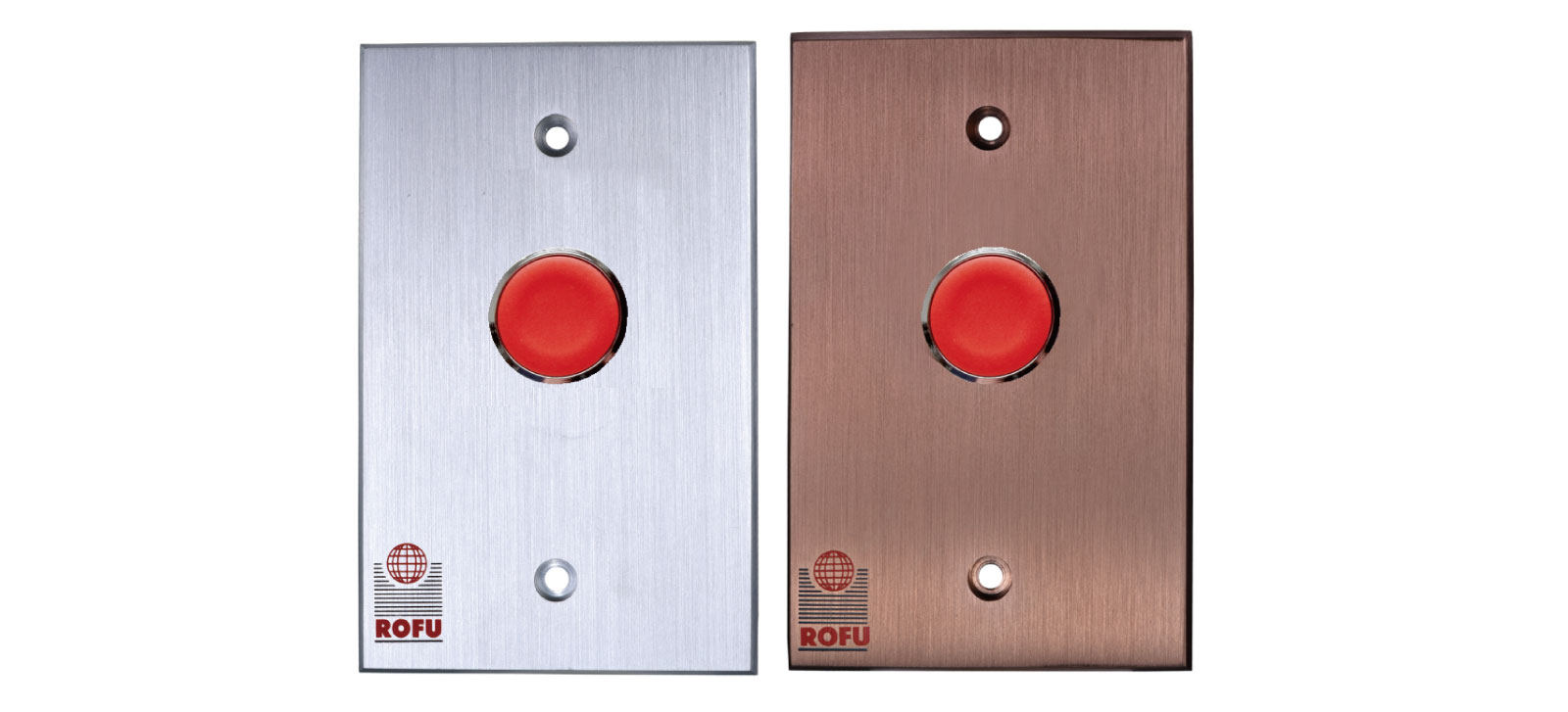

9700 REX switches feature 1 1/4” red flush head SPST with metal surround, and tamper-resistant 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.

• Standard Plate (4 3/4” x 3” x 1/4”)
• Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
• UL Recognized Components
• Rating: 3 A /240 V
• Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

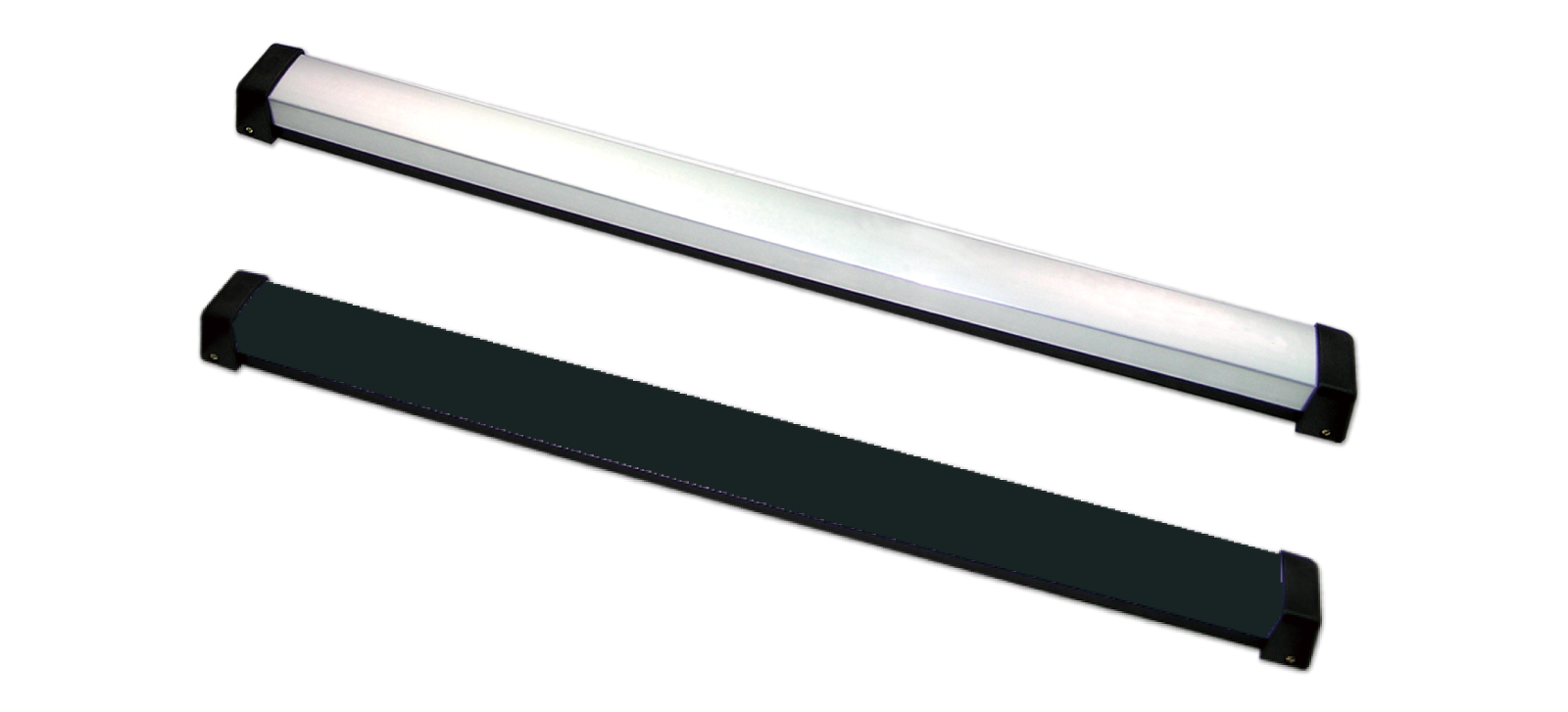

9500 Series Micro-Switch Bar is a non-latching push bar, designed to be installed on emergency doors to release magnetic locks. The 9500-36DE Delayed-Egress Micro-Switch Bar can be programmed to release the magnetic lock after 15 or 30 seconds

• Heavy duty aluminum (US28) cover
• 34 1/2” in length, designed for 36” doors
• Double pole micro-switch output
• Special key to lock the push bar in closed or open position

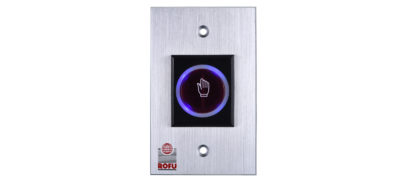

9800 Infrared Sensor Exit Button is a Exit dual-LED illuminated, wave-to-exit device that can directly control electromagnets Exit or electric strikes.

• Standard plate, aluminum alloy finish
• No touch, wave-to-exit
• Dual-LED indicating door status
• Low current draw (40 mA/15 mA)
• Rating: 3 A/12~28 VDC

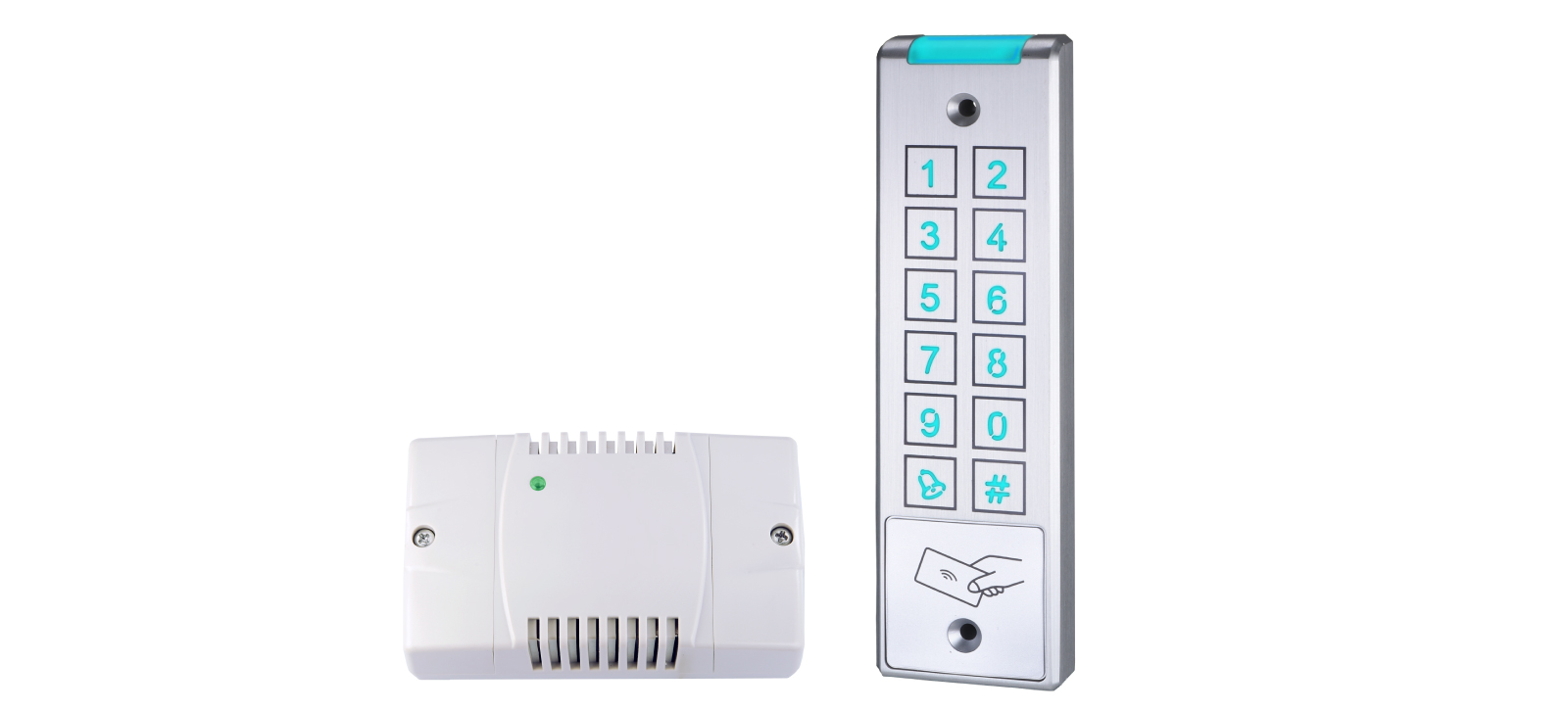

9860 Standalone Proximity Reader is a keypad and RFID reader device, completes with ROFU 9126T plug-in mini power supply. 9860 has 2 LEDs with 4 colors, a built-in buzzer and can be programmed to re-lock after 1~99 seconds.

• Weatherproof (IP65) keypad
• Tamper proof keypad lockout
• Store up to 1,000 user, 4-6 digit PIN
• 3 access modes: Exit
• User card only
• User PIN only
• User card & PIN combination
• Dimension: 6 1/8” (L) x 1 3/4” (W) x 5/8” (D)

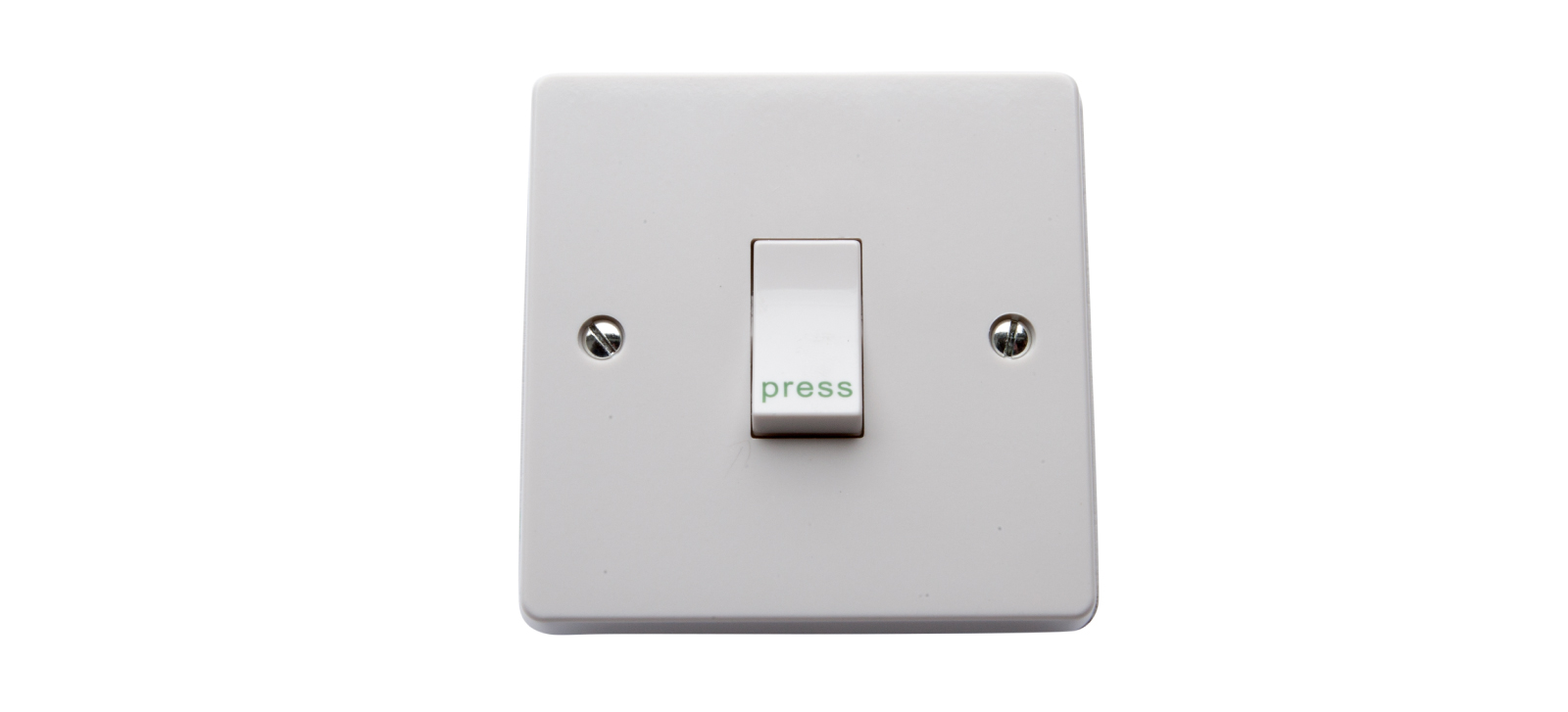

• Momentary Switch
• Designed to be mount under a desk
